| Part number | PBL60 |
|---|---|
| Motor type | BLDC |
| Nominal voltage | 24 - 48 V |
| Nominal power | 104 - 157 W |
| No load speed | 3798 - 3983 rpm |
| No load current | 0.50 - 1.70 A |
| Nominal speed | 3000 rpm |
| Nominal continuous current | 3.0 - 9.9 A |
| Nominal continuous torque | 0.33 - 0.50 Nm |
| Max intermittent torque | 0.58 - 0.88 Nm |
| Stall current | 26.40 - 63.40 A |
| Stall torque | 2.60 - 4.50 Nm |
| Maximum efficiency | 77 - 83% |
| Thermal resistance Ra | 0.12 - 0.76 Ohms |
| Speed constant | 80.3 - 167.3 rpm/V |
| Torque constant | 0.06 - 0.13 Nm/A |
| Speed torque gradient | 870.3 - 1502.6 rpm/Nm |
| Rotor inertia | 4.97 x 10¯⁵ - 7.28 x 10¯⁵ Kgcm² |
| Radial load | 350 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP54 |
| Enclosure | Enclosed |
| Insulation class | B |
| Winding type | Delta |
| Motor poles | 8 |
| Stack length | 50 - 70 mm |
| Motor length | 90 - 110 mm |
| Weight | 1.20 - 1.60 Kg |
| Weight (kg) | 120-1.60 |
PBL60 Range
Part No:PBL60
L: 900-110.0 × W: 60.0 × H: 60.0mm
PBL60 range - BLDC motor - 24 - 48 V - 26 - 42 W - Delivers up to 0.15 Nm of torque - Modular motor - configure online and order in quantities of up to 10 pieces direct from our website
This product comes in multiple variations. Get in touch to discuss your exact requirements.
| Product name | Speed (rpm) | Power (Watts) | Volts (v) | Torque Cont. (Nm) | Torque Int (Nm) | |
|---|---|---|---|---|---|---|
|

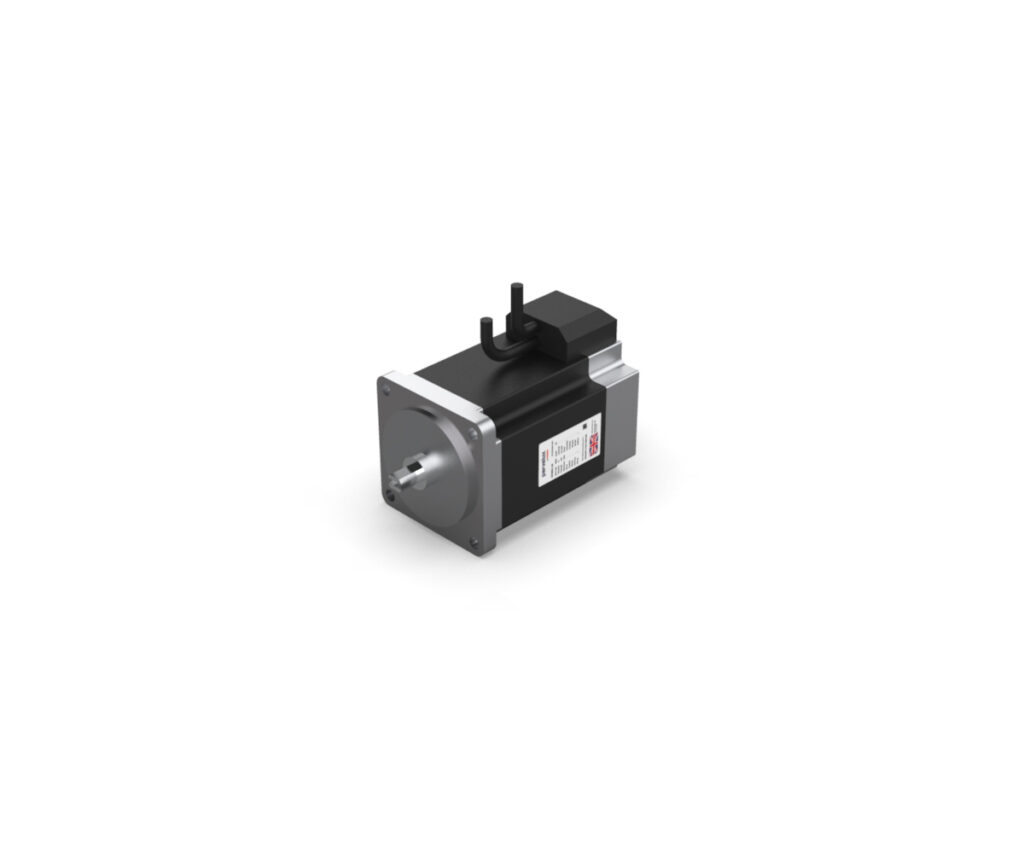

PART NO: 776618 PBL60-50 24V 3000 RPM |
3000 | 104 | 24 | 0.33 | 0.58 | |
|
PART NO: 776619 PBL60-50 48V 3000 RPM |
3000 | 104 | 48 | 0.33 | 0.58 | |
|

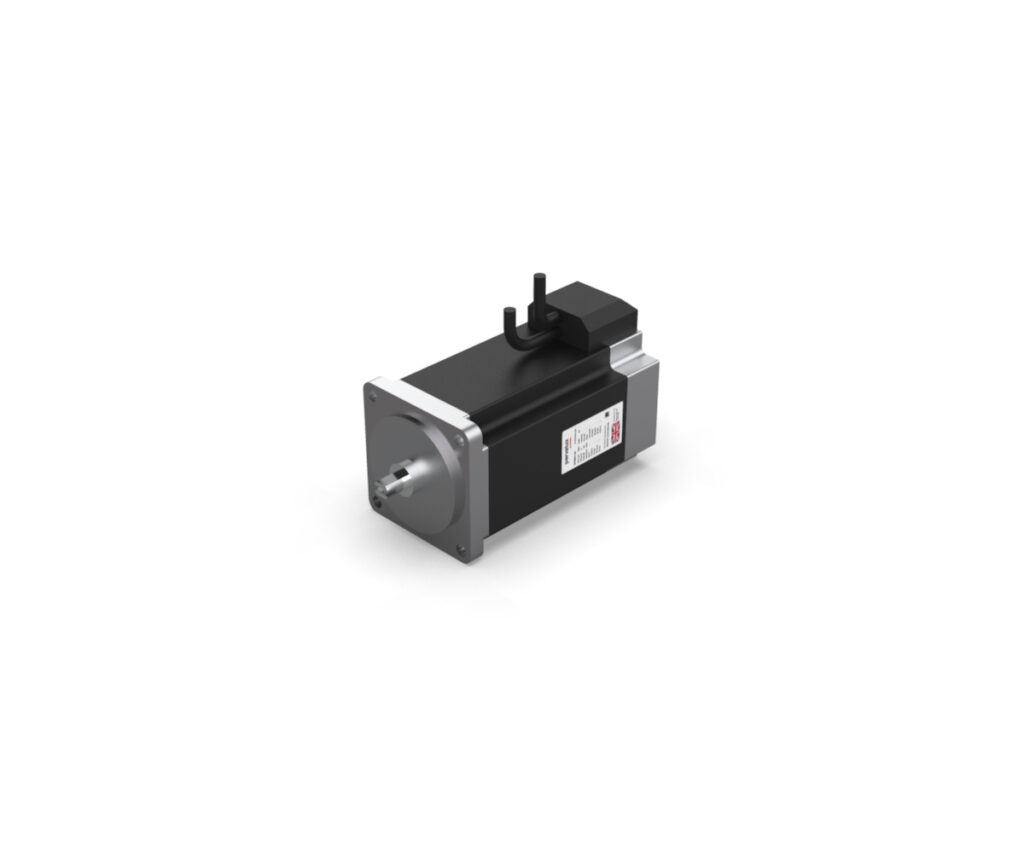

PART NO: 776620 PBL60-70 24V 3000 RPM |
3000 | 157 | 24 | 0.5 | 0.88 | |
|
PART NO: 776621 PBL60-70 48V 3000 RPM |
3000 | 157 | 48 | 0.5 | 0.88 |
The Parvalux PBL60 is a brushless direct current (BLDC) motor. It is available in a range of options with voltages from 24V - 48V DC and output power up to 209 Watts. It is rated for nominal continuous torque up to 0.50 Nm (S1) and maximum intermittent torque up to 0.88 Nm (S2 - 15 mins). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
