| Motor Type | BLDC |
|---|---|
| Motor Poles | 2 |
| Rated Motor Power | 104 W |
| Stack Length | 50 mm |
| Motor IP Rating | IP54 |
| Gearbox Orientation | Right Angle |
| Gearbox Type | Worm Wheel |
| Gearbox Ratio | 15:1 ratio |
| Gear Material | Bronze |
| Gearbox Stages | 1 |
| Gearbox Efficiency | 75% |
| Gearbox Axial Load | 300 N |
| Gearbox Radial Load | 400 N |
| Gearbox length | 88 mm |
| Motor length | 90 mm |
| Weight (kg) | 2.03 |

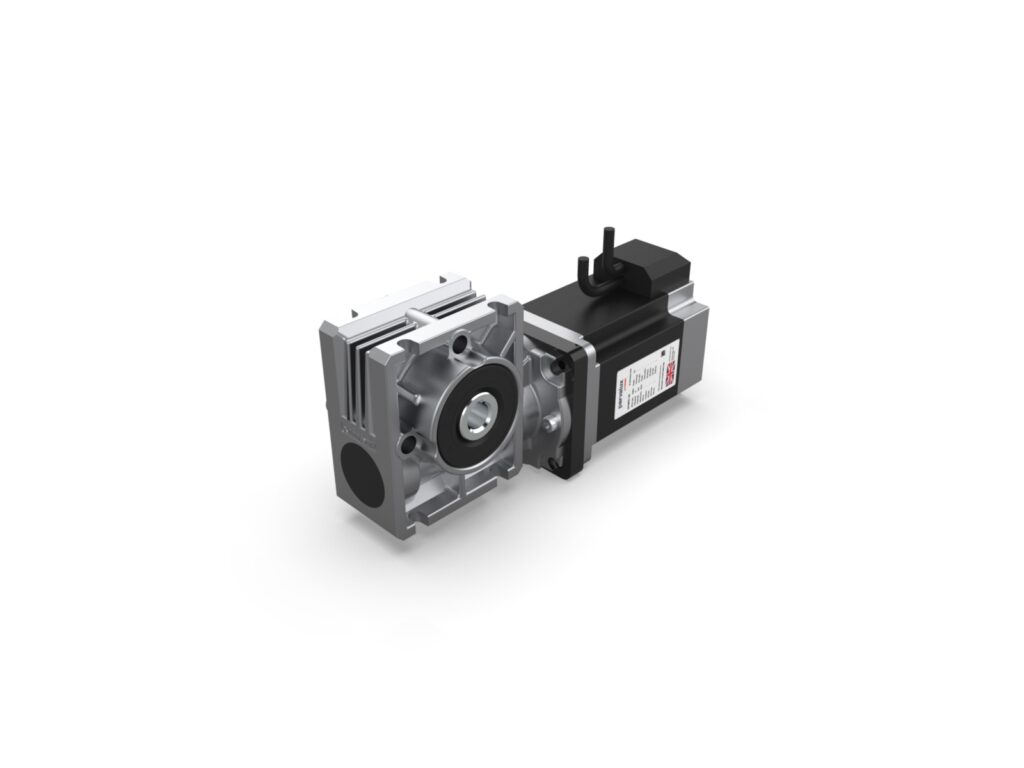

PBL60-50 48V 3000RPM – GB28 15:1 Bronze
Part No:776619-735904
L: 178 × W: 63 × H: 92mm
PBL60-50 24V 3000RPM - GB28 15:1 Bronze - BLDC geared right-angle motor - 24 V - Delivers up to 6.4 Nm of torque (S2 - 50 minutes) - Bronze gears - Available as part of the modular range. Configure online and order in quantities of up to 10 pieces direct from our website
The Parvalux PBL60-50-GB28 range is a modular motor and gearbox combination, offering motor voltages of 24 - 48 V and gearbox ratios of 15 - 60:1. The pairing of this motor and gearbox offers between 50 - 200 rpm and up to 8.0 Nm of torque in intermittent operation (S2 - 15 minutes). As part of the modular range, you can also add accessories such as brakes, encoders, and shaft extension kits to fine tune your combination to perfectly meet the requirements of your application.
