| Part number | PBL42 |
|---|---|
| Motor type | BLDC |
| Nominal voltage | 24 - 48 V |
| Nominal power | 26 - 42 W |
| No load speed | 5836 - 6227 rpm |
| No load current | 0.30 - 0.40 A |
| Nominal speed | 4000 rpm |
| Nominal continuous current | 1.0 - 2.6 A |
| Nominal continuous torque | 0.06 - 0.10 Nm |
| Max intermittent torque | 0.10 - 0.15 Nm |
| Stall current | 3.34 - 9.60 A |
| Stall torque | 0.21 - 0.40 Nm |
| Maximum efficiency | 75 - 77% |
| Thermal resistance Ra | 0.87 - 7.10 Ohms |
| Speed constant | 132.2 - 251.7 rpm/V |
| Torque constant | 0.032 - 0.093 Nm/A |
| Speed torque gradient | 14157 - 29351 rpm/Nm |
| Rotor inertia | 3.3 x 10¯⁶ - 5.5 x 10¯⁶ Kgcm² |
| Radial load | 130 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP54 |
| Enclosure | Enclosed |
| Insulation class | B |
| Winding type | Delta |
| Motor poles | 8 |
| Stack length | 15 - 30 mm |
| Motor length | 47 - 67 mm |
| Weight | 0.30 - 0.45 Kg |
| Weight (kg) | 030-0.45 |

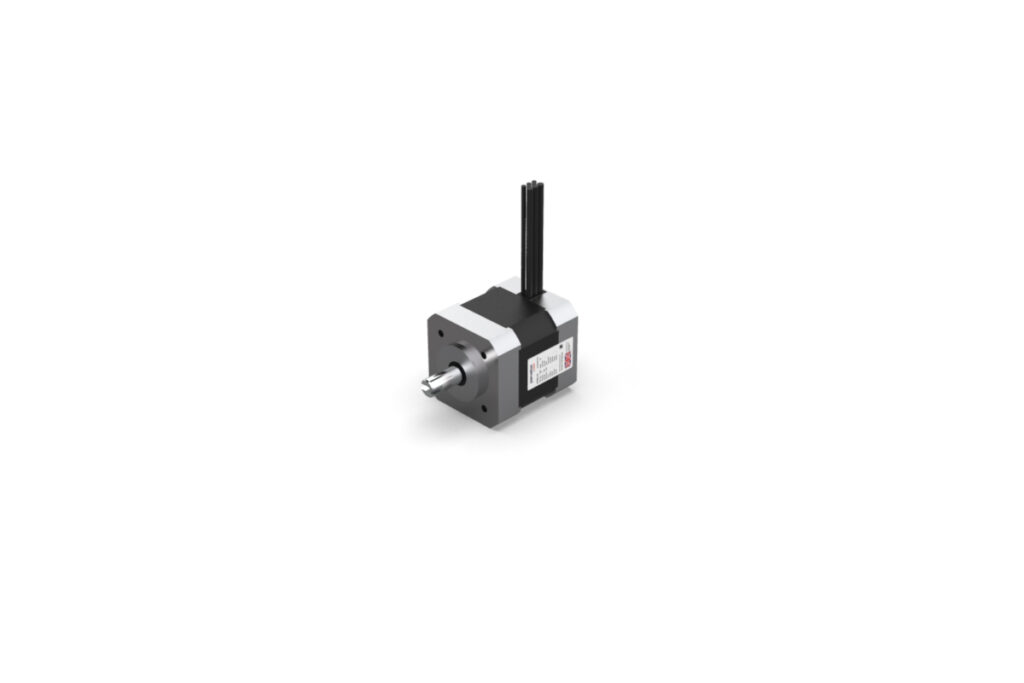

PBL42 Range
Part No:PBL42
L: 470-67.0 × W: 42.0 × H: 42.0mm
PBL42 range - BLDC motor - 24 - 48 V - 26 - 42 W - Delivers up to 0.15 Nm of torque - Modular motor - configure online and order in quantities of up to 10 pieces direct from our website
This product comes in multiple variations. Get in touch to discuss your exact requirements.
| Product name | Speed (rpm) | Power (Watts) | Volts (v) | Torque Cont. (Nm) | Torque Int (Nm) | |
|---|---|---|---|---|---|---|
|
PART NO: 776614 PBL42-15 24V 4000 RPM |
4000 | 26 | 24 | 0.06 | 0.1 | |
|
PART NO: 776615 PBL42-15 48V 4000 RPM |
4000 | 26 | 48 | 0.06 | 0.1 | |
|
PART NO: 776616 PBL42-35 24V 4000 RPM |
4000 | 42 | 24 | 0.1 | 0.15 | |
|
PART NO: 776617 PBL42-35 48V 4000 RPM |
4000 | 42 | 48 | 0.1 | 0.15 |
The Parvalux PBL42 is a brushless direct current (BLDC) motor. It is available in a range of options with voltages from 24V - 48V DC and output power up to 77 Watts. It is rated for nominal continuous torque up to 0.1 Nm (S1) and maximum intermittent torque up to 0.15 Nm (S2 - 15 mins). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
