| Motor Type | BLDC |
|---|---|
| Motor Poles | 2 |
| Nominal power | 42 W |
| Stack length | 35 mm |
| Motor IP rating | IP54 |
| Gearbox Orientation | Inline |
| Gearbox Type | Planetary |
| Gearbox Ratio | 19:1 ratio |
| Gear Material | Steel |
| Gearbox Stages | 2 |
| Gearbox Efficiency | 81% |
| Gearbox Axial Load | 150 N |
| Gearbox Radial Load | 240 N |
| Gearbox Continuous Torque | 1.5 Nm |
| Gearbox Intermittent Torque | 2.3 Nm |
| Backlash | 48 arc.min |
| Weight (kg) | 0.81 |

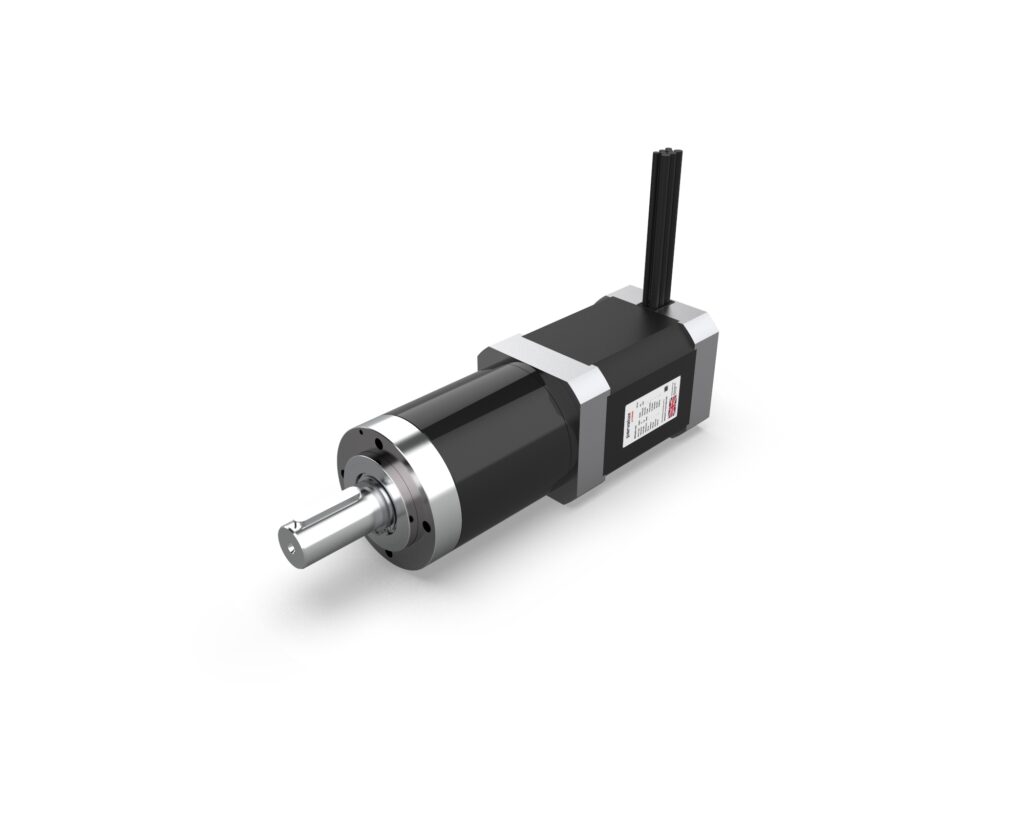

PBL42-35 24V 4000RPM – PGx42 19:1 Steel
Part No:776616-891038
L: 118.8 × W: 42 × H: 42mm
PBL42-35 24V 4000 RPM Modular BLDC motor with the PGx42 19:1 Steel gearbox

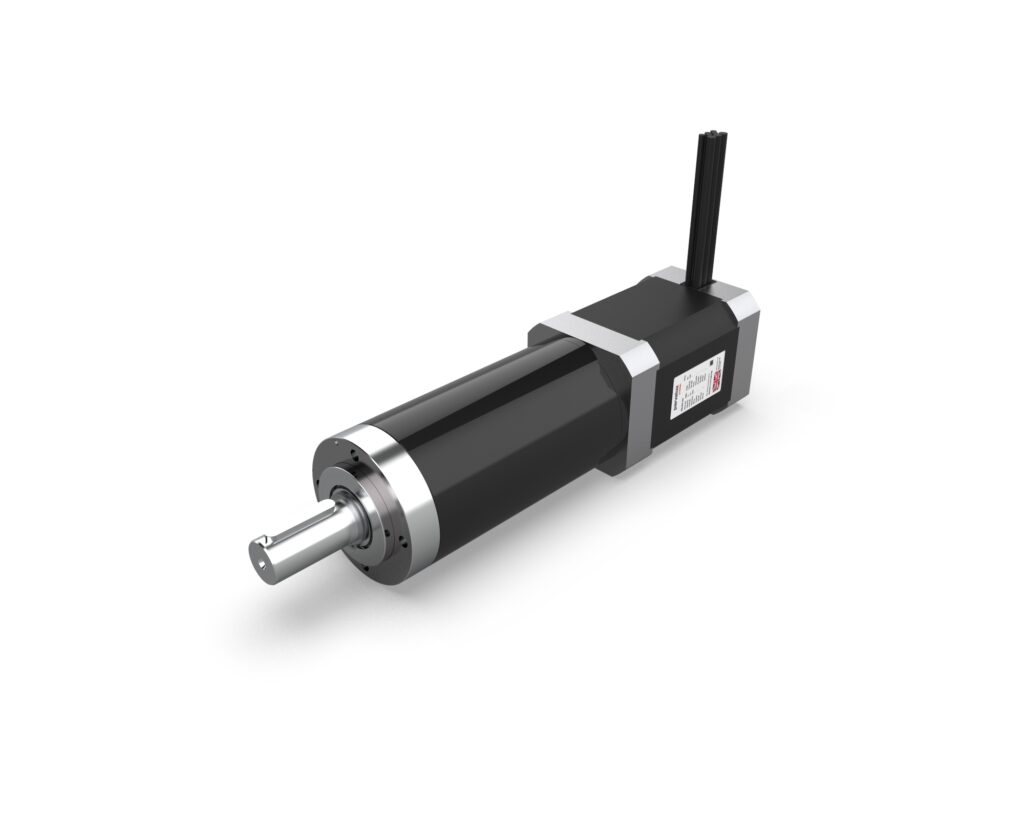

The Parvalux PBL42-35-PGx42 range is a modular motor and gearbox combination, offering motor voltages of 24 - 48 V and gearbox ratios of 4.3:1 - 353:1. The pairing of this motor and gearbox offers between 11 - 930 rpm and up to 16.9 Nm of torque in intermittent operation (S2 - 15 minutes). As part of the modular range, you can also add accessories such as brakes and encoders to fine tune your combination to perfectly meet the requirements of your application.
