| Motor Type | BLDC |
|---|---|
| Motor Poles | 2 |
| Nominal power | 26 W |
| Stack length | 15 mm |
| Motor IP rating | IP54 |
| Gearbox Orientation | Inline |
| Gearbox Type | Planetary |
| Gearbox Ratio | 4.3:1 ratio |
| Gear Material | Steel |
| Gearbox Stages | 1 |
| Gearbox Efficiency | 90% |
| Gearbox Axial Load | 150 N |
| Gearbox Radial Load | 120 N |
| Gearbox Continuous Torque | 0.2 Nm |
| Gearbox Intermittent Torque | 0.4 Nm |
| Backlash | 36 arc.min |
| Weight (kg) | 0.56 |
PBL42-15 48V 4000RPM – PGx42 4.3:1 Steel
Part No:776615-891037
L: 84.3 × W: 42 × H: 42mm

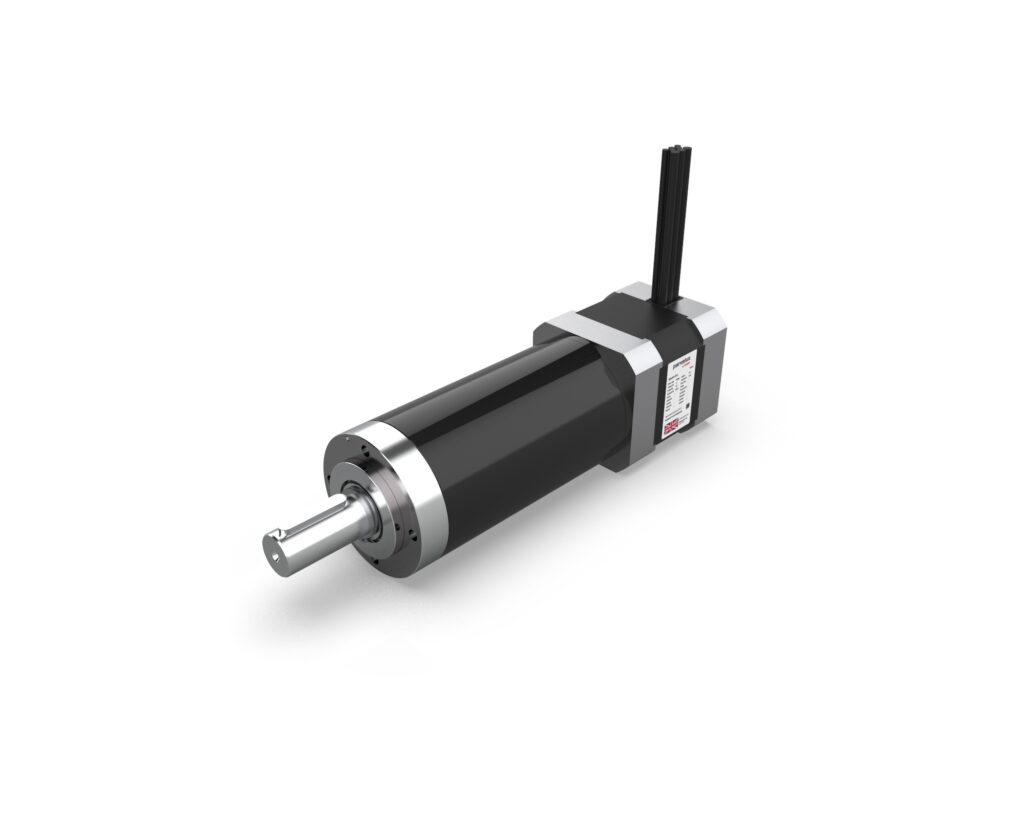

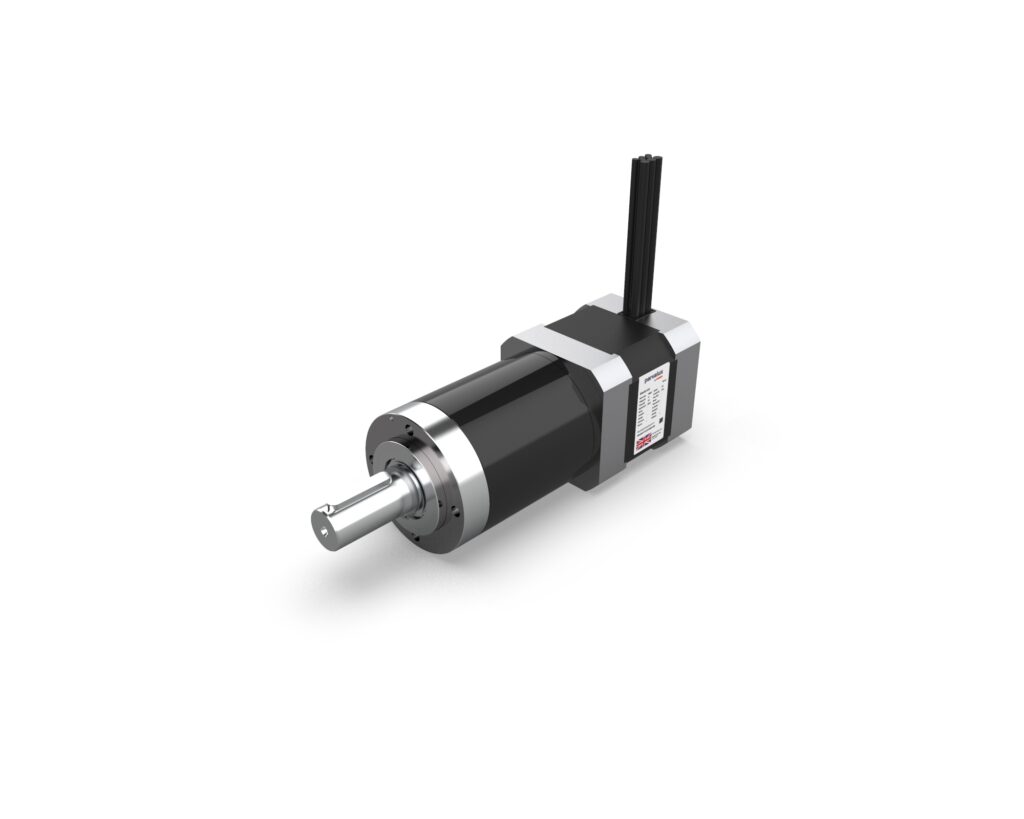

PBL42-15 48V 4000 RPM Modular BLDC motor with the PGx42 4.3:1 Steel gearbox
The Parvalux PBL42-15-PGx42 range is a modular motor and gearbox combination, offering motor voltages of 24 - 48 V and gearbox ratios of 4.3:1 - 353:1. The pairing of this motor and gearbox offers between 11 - 930 rpm and up to 16.9 Nm of torque in intermittent operation (S2 - 15 minutes). As part of the modular range, you can also add accessories such as brakes and encoders to fine tune your combination to perfectly meet the requirements of your application.
