| Part number | 776615-735906 |
|---|---|
| Voltage | 24 V |
| Nominal power | 26 W |
| Nominal speed | 133 rpm |
| Combination gear ratio | 30:1 |
| Combination gear material | Bronze |
| Nominal torque | 1.20 Nm |
| Intermittent torque | 1.90 Nm |
| Motor part number | 776615 |
| Motor type | BLDC |
| Motor voltage | 24 V |
| Motor power | 26 W |
| Motor output speed | 4000 rpm |
| Motor continuous current | 1.0 A |
| Motor no load speed | 6227 rpm |
| Motor no load current | 0.30 A |
| Motor continuous torque | 0.06 Nm |
| Motor intermittent torque | 0.10 Nm |
| Motor length (L) | 47 mm |
| Motor weight | 0.30 Kg |
| Gearbox part number | 735906 |
| Gearbox ratio | 30:1 ratio |
| Gearbox orientation | Right angle |
| Gearbox type | Worm wheel |
| Gearbox max continuous torque | 5.0 Nm |
| Gearbox max intermittent torque | 8.0 Nm |
| Gearbox efficiency | 65% |
| Gearbox gear material | Bronze |
| Gearbox axial load | 300 N |
| Gearbox radial load | 400 N |
| Gearbox length | 88 mm |
| Gearbox weight | 0.83 Kg |
| Weight (kg) | 1.13 |

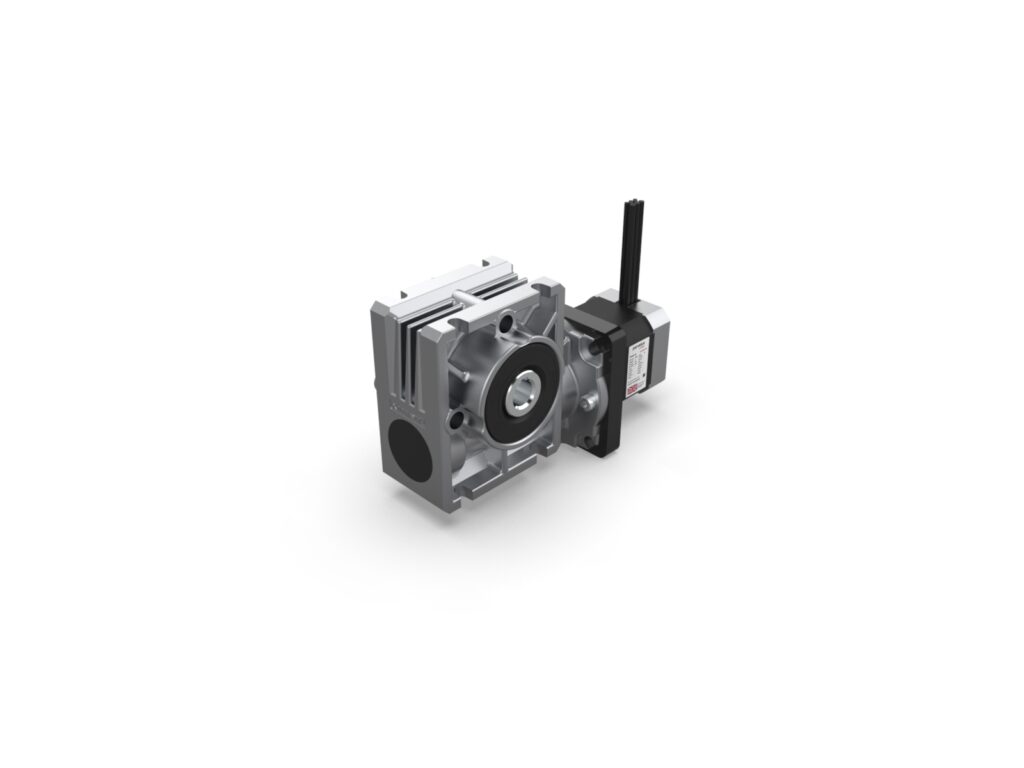

PBL42-15 24V 4000RPM – GB28 30:1 Bronze
Part No:776615-735906
L: 135.0 × W: 63.0 × H: 92.0mm
PBL42-15 24V 4000RPM - GB28 30:1 Bronze - BLDC geared right-angle motor - 24 V - Delivers up to 1.9 Nm of torque (S2 - 15 minutes) - Bronze gears - Available as part of the modular range. Configure online and order in quantities of up to 10 pieces direct from our website
Volume Discounts
| Quantity | Price |
|---|---|
| 1 - 4 | £597.83 / unit |
| 5 - 10 | £448.37 / unit |
| 10+ | Please Enquire |
The Parvalux PBL42-15-GB28 range is a modular motor and gearbox combination, offering motor voltages of 12 - 24 V and gearbox ratios of 15 - 60:1. The pairing of this motor and gearbox offers between 67 - 267 rpm and up to 2.7 Nm of torque in intermittent operation (S2 - 15 minutes). As part of the modular range, you can also add accessories such as brakes, encoders, and shaft extension kits to fine tune your combination to perfectly meet the requirements of your application.
