| Gearbox part number | MWS |
|---|---|
| Gearbox ratio | 24:1 - 1400:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm spur |
| Gearbox gear material | Composite |
| Gearbox stages | 2 |
| Gearbox continuous torque | 9.0 - 45.0 Nm |
| Gearbox intermittent torque | 9.0 - 45.0 Nm |
| Gearbox axial load | 177 N |
| Gearbox radial load | 353 N |
| Gearbox efficiency | 54 - 76% |
| Gearbox backlash | 50 - 75 arc.min |
| Gearbox length | 100 mm |
| Gearbox weight | 2.75 Kg |
| Weight (kg) | 2.75 |
MWS Range
Part No:MWS
L: 100.0 × W: 101.0 × H: 127.0mm

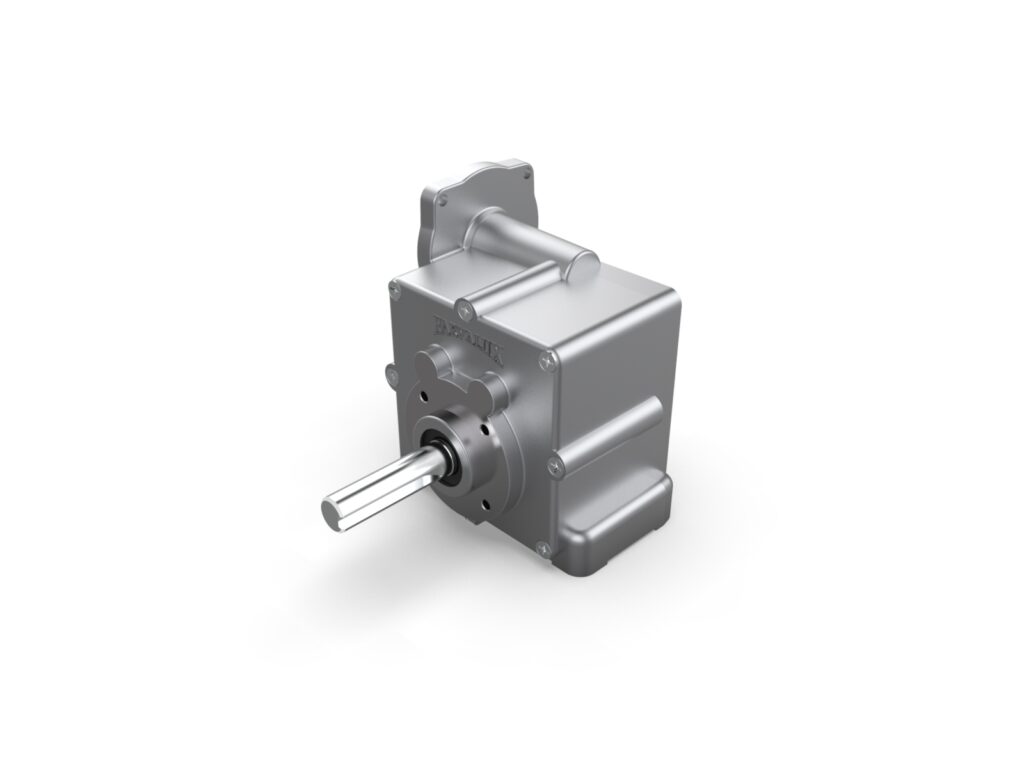

MWS range - Right-angle worm-spur Wheel gearbox - Available in a wide range of worm and spur ratio combinations - Delivers up to 45.0 Nm of torque (S2 - 15 minutes) - Composite gears - Standard gearbox - please contact your local sales engineer for details on your customisation options
This product comes in multiple variations. Get in touch to discuss your exact requirements.
| Product name | Nm (Cont.) | Nm (Int) | |
|---|---|---|---|
|
PART NO: MWS-6S4W MWS 6:1 Spur / 4:1 Worm Composite |
9 | 9 | |
|
PART NO: MWS-15S7W MWS 15:1 Spur / 7:1 Worm Composite |
22 | 22 | |
|
PART NO: MWS-35S40W MWS 35:1 Spur / 40:1 Worm Composite |
45 | 45 | |
|
PART NO: MWS-6S6W MWS 6:1 Spur / 6:1 Worm Composite |
9 | 9 | |
|
PART NO: MWS-6S8W MWS 6:1 Spur / 8:1 Worm Composite |
9 | 9 | |
|
PART NO: MWS-15S4W MWS 15:1 Spur / 4:1 Worm Composite |
22 | 22 | |
|
PART NO: MWS-15S8W MWS 15:1 Spur / 8:1 Worm Composite |
22 | 22 | |
|
PART NO: MWS-35S4W MWS 35:1 Spur / 4:1 Worm Composite |
45 | 45 | |
|
PART NO: MWS-35S12W MWS 35:1 Spur / 12:1 Worm Composite |
45 | 45 | |
|
PART NO: MWS-35S27W MWS 35:1 Spur / 27:1 Worm Composite |
45 | 45 |
The MWS gearbox range is available with composite gears and can produce up to 45 Nm of continuous torque. It's available in several gear ratios and can suit the needs of a range of applications. The Gearbox offers efficiencies up to 76% making the range perfect for markets Where efficiency is vital. To find out more or to order from the range, please contact our team.
