| Gearbox part number | M30C |
|---|---|
| Gearbox ratio | 30:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm Wheel |
| Gearbox gear material | Composite |
| Gearbox stages | 1 |
| Gearbox continuous torque | 8.0 Nm |
| Gearbox intermittent torque | 13.0 Nm |
| Gearbox axial load | 300 N |
| Gearbox radial load | 350 N |
| Gearbox efficiency | 70% |
| Gearbox backlash | 10-25 arc.min |
| Gearbox length | 78 mm |
| Gearbox weight | 0.70 Kg |
| Weight (kg) | 0.70 |

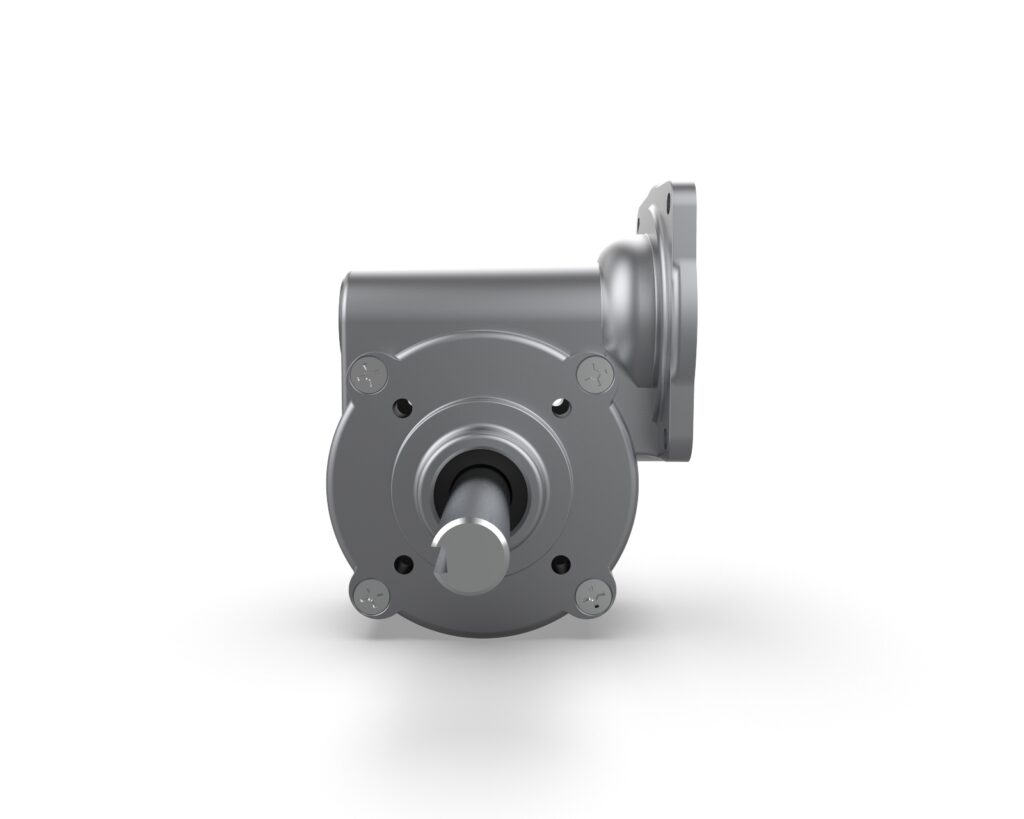

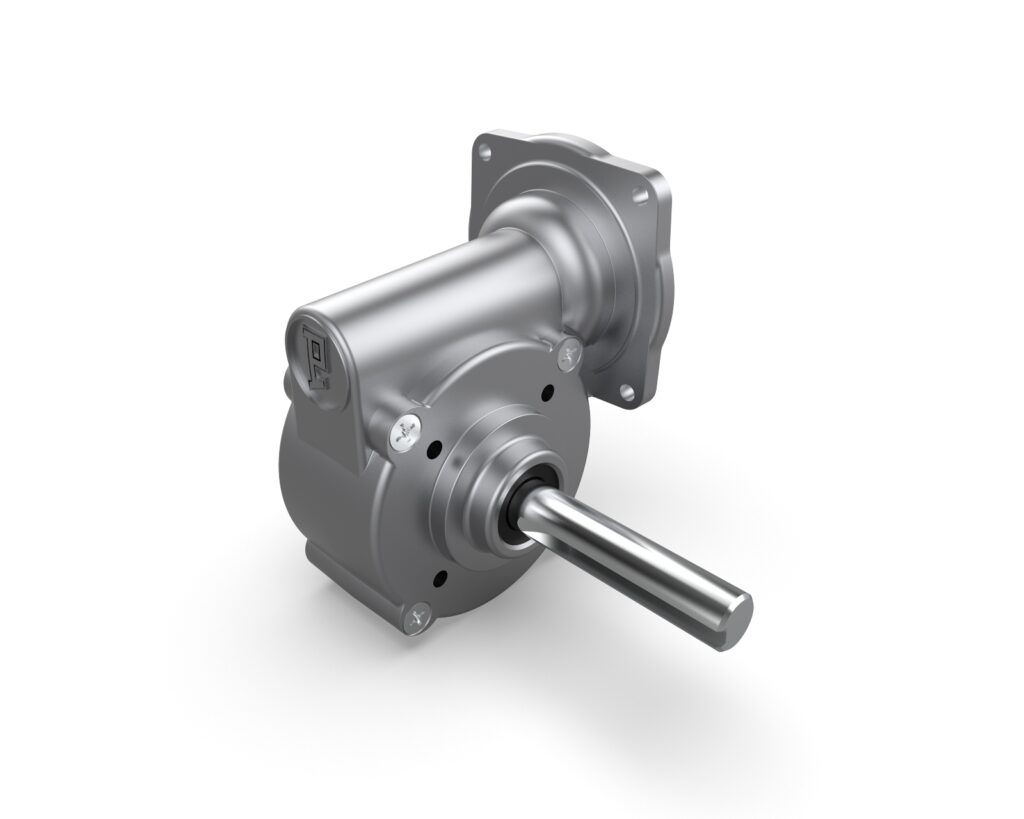

M Box 30:1 Composite
Part No:M30C
L: 78.0 × W: 63.0 × H: 100.0mm
M Box 30:1 Composite - Right-angle worm Wheel gearbox - 30:1 gear ratio - Delivers up to 13.0 Nm of torque (S2 - 15 minutes) - Composite gears - Standard gearbox - please contact your local sales engineer for details on your customisation options
The Parvalux M Box is a right-angle, worm Wheel gearbox. With available ratios ranging from 4 - 72:1, it offers a wide range of output speeds and a capability of up to 12 Nm torque in continuous operation and 19 Nm in intermittent operation. The M gearbox is available with both composite and bronze gears, offering efficiencies of up to 85%. It is also perfectly suited for use with a range of Parvalux PMDC and BLDC motors, enabling you to assemble the perfect combination of motor and gearbox for your application.
