| Gearbox part number | LWS-25S13W |
|---|---|
| Gearbox ratio | 325:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm spur |
| Gearbox gear material | Composite |
| Gearbox stages | 2 |
| Gearbox continuous torque | 62.0 Nm |
| Gearbox intermittent torque | 62.0 Nm |
| Gearbox axial load | 226 N |
| Gearbox radial load | 446 N |
| Gearbox efficiency | 64% |
| Gearbox backlash | 50-75 arc.min |
| Gearbox length | 128 mm |
| Gearbox weight | 3.90 Kg |
| Weight (kg) | 3.90 |

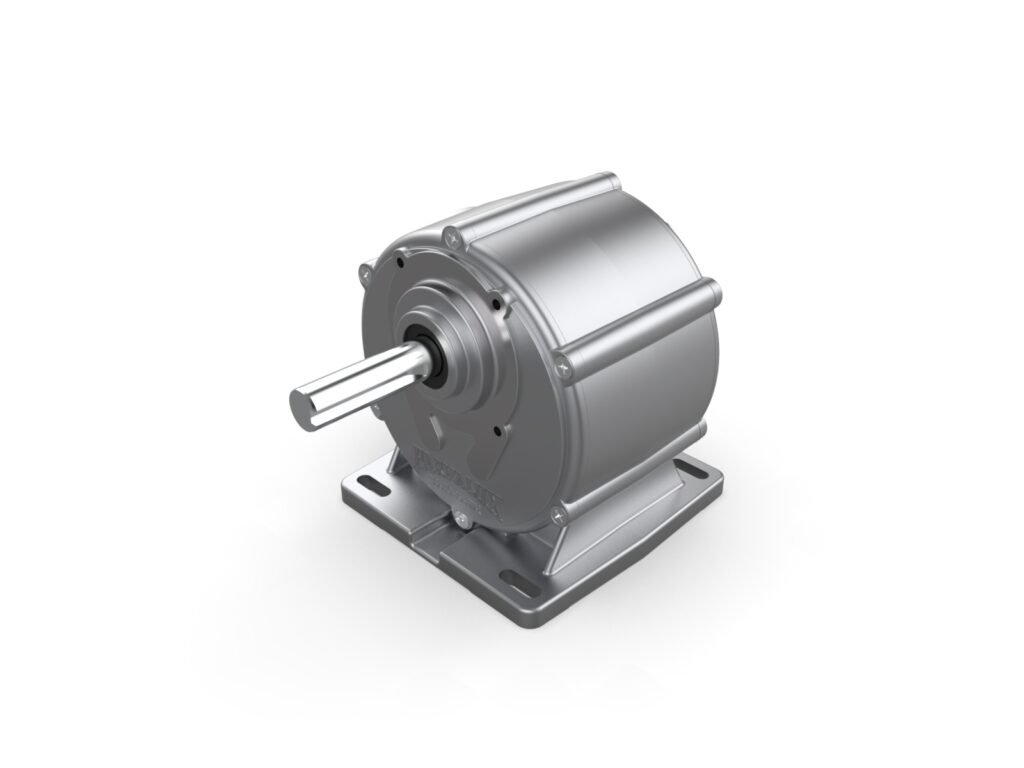

LWS 25:1 Spur / 13:1 Worm Composite
Part No:LWS-25S13W
L: 128.0 × W: 122.0 × H: 133.0mm
LWS 25:1 Spur / 13:1 Worm Composite - Right-angle worm-spur Wheel gearbox - 25:1 spur / 13:1 worm gear ratio - Delivers up to 62.0 Nm of torque (S2 - 15 minutes) - Composite gears - Standard gearbox - please contact your local sales engineer for details on your customisation options
The LWS 25:1 Spur / 13:1 Worm gearbox is available with composite gears and weighs 3.9 kg. It can produce up to 62 Nm of continuous torque and offers efficiencies of up to 64%. This powerful gearbox can be used within multiple applications and is compatible with AC, BLDC, and PMDC motors. For more information, please contact our expert team.
