| Gearbox part number | LIW-240B |
|---|---|
| Gearbox ratio | 240:1 |
| Gearbox orientation | Inline |
| Gearbox type | Spur |
| Gearbox gear material | Bronze |
| Gearbox stages | 2 |
| Gearbox continuous torque | 45.0 Nm |
| Gearbox intermittent torque | 45.0 Nm |
| Gearbox axial load | 196 N |
| Gearbox radial load | 353 N |
| Gearbox efficiency | 59% |
| Gearbox backlash | 50 - 75 arc.min |
| Gearbox length | 102 mm |
| Gearbox weight | 3.80 Kg |
| Weight (kg) | 3.80 |

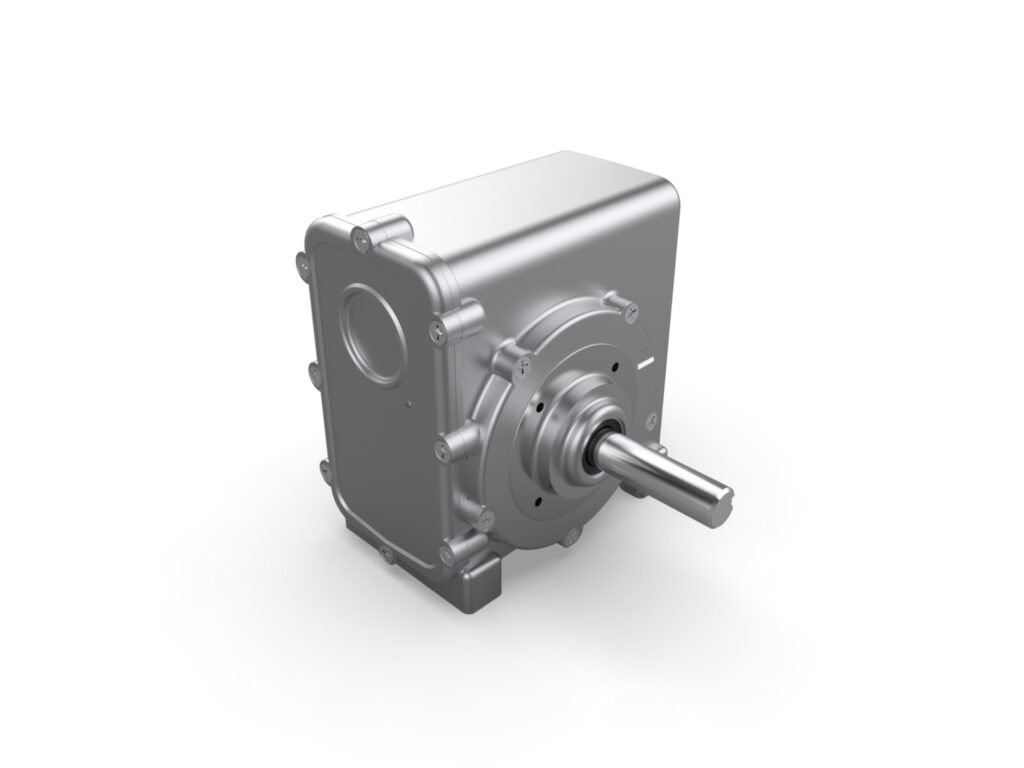

LIW 240:1 Bronze
Part No:LIW-240B
L: 102.0 × W: 147.0 × H: 146.0mm
LIW 240:1 Bronze - Inline worm wheel gearbox - 240:1 worm gear ratio - Delivers up to 45.0 Nm of torque (S2 - 15 minutes) - Bronze gears - Standard gearbox - please contact your local sales engineer for details on your customisation options
The LIW 240:1 Bronze inline gearbox offers 45 Nm of torque and up to 59% efficiency. Compatible with a range of our AC and DC motors, and offering a wide selection of customisation options, the LIW can meet your exact specification. Contact your local sales engineer to discuss your requirements.
