| Gearbox part number | LIS-75C |
|---|---|
| Gearbox ratio | 75:1 |
| Gearbox orientation | Inline |
| Gearbox type | Spur |
| Gearbox gear material | Composite |
| Gearbox stages | 2 |
| Gearbox continuous torque | 51.0 Nm |
| Gearbox intermittent torque | 51.0 Nm |
| Gearbox axial load | 177 N |
| Gearbox radial load | 265 N |
| Gearbox efficiency | 77% |
| Gearbox backlash | 50 - 75 arc.min |
| Gearbox length | 117 mm |
| Gearbox weight | 3.70 Kg |
| Weight (kg) | 3.70 |

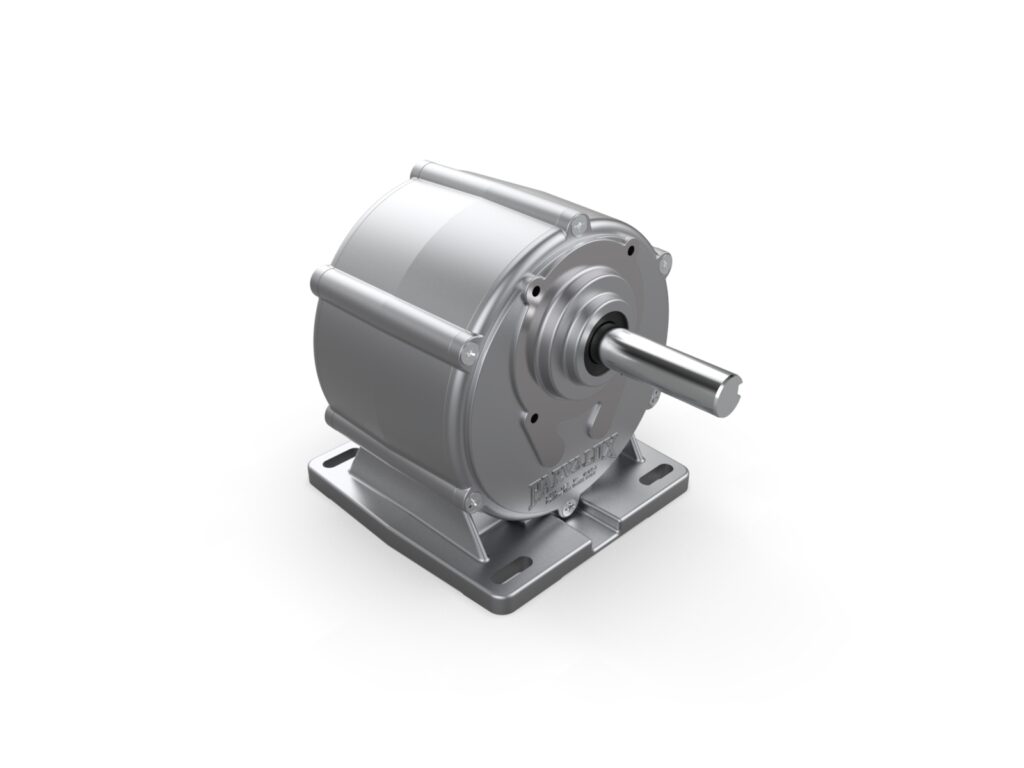

LIS 75:1 Composite
Part No:LIS-75C
L: 117.0 × W: 120.0 × H: 133.0mm
LIS 75:1 Composite - Inline spur wheel gearbox - 75:1 worm gear ratio - Delivers up to 51.0 Nm of torque (S2 - 15 minutes) - Composite gears - Standard gearbox - please contact your local sales engineer for details on your customisation options
The LIS 75:1 inline gearbox offers 51 Nm of intermittent torque and up to 77% efficiency. With a wide range of gear ratios on offers, as well as compatability with our AC and DC motors, the LIS gearbox range is the ideal solution for a myriad of applications. To find out more or to place an order with us please contact your local sales engineer.
