L Box Range

Torque continuous (Nm)

15

Torque intermittent (Nm)

15

Part No:L Box

W: 108 × H: 141mm

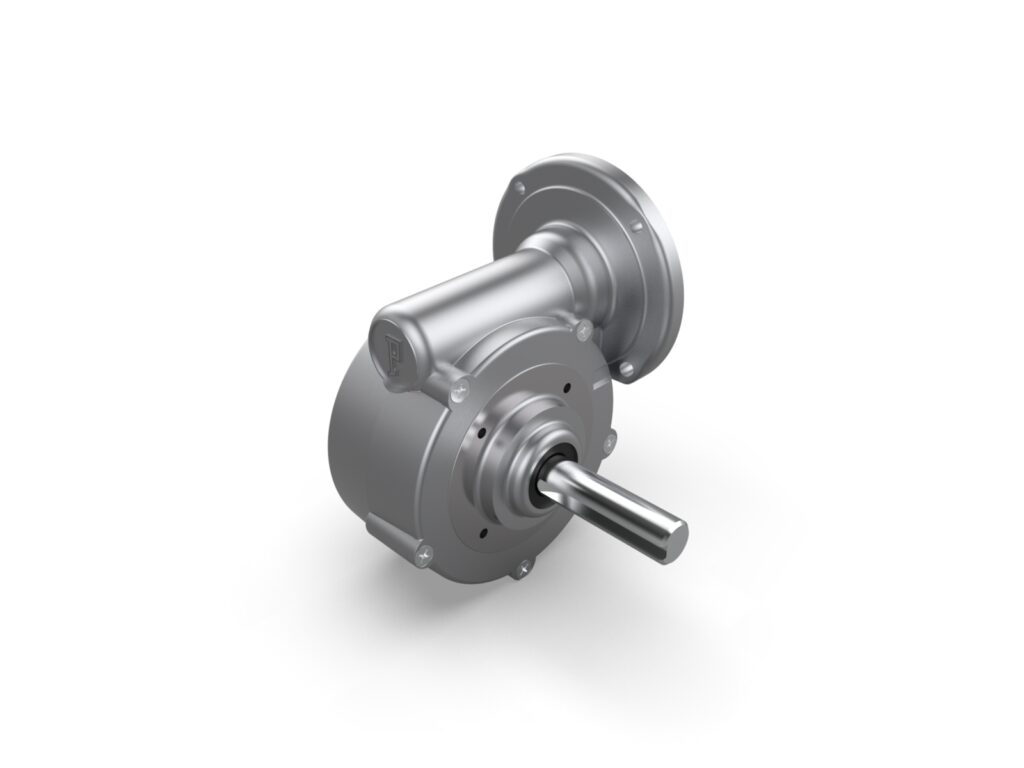

The L Box gearbox range comes with a choice of either bronze or composite gears and multiple gear ratios to suit many applications. To find out more, please contact our expert team of sales engineers

This product comes in multiple variations. Get in touch to discuss your exact requirements.

Hidden
Consent(Required)
Range Product Name Part No Type Gear Ratio Nm (Cont) Nm (Int)
L Box 5:1 Composite L5C Worm 5:1 15 15 View Spec Overview
L Box 20:1 Composite L20C Worm 20:1 15 15 View Spec Overview
L Box 60:1 Composite L60C Worm 60:1 15 15 View Spec Overview
L Box 5:1 Bronze L5B Worm 5:1 19 22 View Spec Overview
L Box 20:1 Bronze L20B Worm 20:1 19 22 View Spec Overview
L Box 60:1 Bronze L60B Worm 60:1 19 22 View Spec Overview
L Box 5:1 Composite Part no L5C

Range

Product Name

L Box 5:1 Composite

Part No

L5C

Type

Worm

Gear Ratio

5:1

Nm (Cont)

15

Nm (Int)

15

L Box 20:1 Composite Part no L20C

Range

Product Name

L Box 20:1 Composite

Part No

L20C

Type

Worm

Gear Ratio

20:1

Nm (Cont)

15

Nm (Int)

15

L Box 60:1 Composite Part no L60C

Range

Product Name

L Box 60:1 Composite

Part No

L60C

Type

Worm

Gear Ratio

60:1

Nm (Cont)

15

Nm (Int)

15

L Box 5:1 Bronze Part no L5B

Range

Product Name

L Box 5:1 Bronze

Part No

L5B

Type

Worm

Gear Ratio

5:1

Nm (Cont)

19

Nm (Int)

22

L Box 20:1 Bronze Part no L20B

Range

Product Name

L Box 20:1 Bronze

Part No

L20B

Type

Worm

Gear Ratio

20:1

Nm (Cont)

19

Nm (Int)

22

L Box 60:1 Bronze Part no L60B

Range

Product Name

L Box 60:1 Bronze

Part No

L60B

Type

Worm

Gear Ratio

60:1

Nm (Cont)

19

Nm (Int)

22

Gearbox Orientation Right Angle
Gearbox Type Worm
Gearbox Ratio 5:1 - 60:1
Gear Material Composite
Gearbox Stages 1
Gearbox Efficiency 45 - 90%
Gearbox Axial Load 132 N
Gearbox Radial Load 177 N
Gearbox Continuous Torque 15.0 -19.0 Nm
Gearbox Intermittent Torque 15.0 - 22.0 Nm
Backlash 10 - 25 arc.min
Weight (kg) 15-1.9

The L Box gearbox range is available with either bronze or composite gears and is capable of producing 15 – 22 Nm of torque across a range of gear ratios. With efficiencies of up to 90%, as well as a wide range of customisation options, the L Box is perfect for a myriad of applications. Contact our team today to discuss your requirements.
