| Gearbox part number | GB9-30B |
|---|---|
| Gearbox ratio | 30:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm Wheel |
| Gearbox gear material | Bronze |
| Gearbox stages | 1 |
| Gearbox continuous torque | 75.0 Nm |
| Gearbox intermittent torque | 120.0 Nm |
| Gearbox axial load | 600 N |
| Gearbox radial load | 800 N |
| Gearbox efficiency | 70% |
| Gearbox backlash | 10-25 arc.min |
| Gearbox length | 138 mm |
| Gearbox weight | 3.40 Kg |
| Weight (kg) | 3.40 |

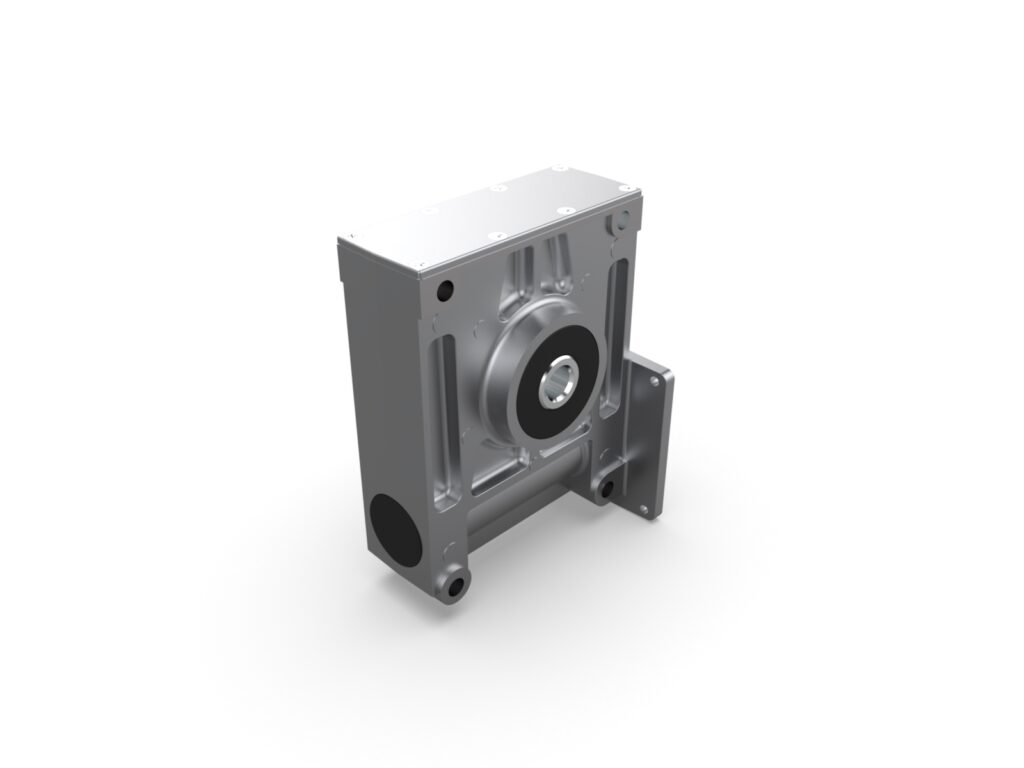

GB9 30:1 Bronze
Part No:GB9-30B
L: 138.0 × W: 90.0 × H: 176.0mm
GB9 30:1 Bronze - Right-angle worm Wheel gearbox - 30:1 gear ratio - Delivers up to 120.0 Nm of torque (S2 - 15 minutes) - Bronze gears - Standard gearbox - please contact your local sales engineer for details on your customisation options
The Parvalux GB9 is a right-angle, worm Wheel gearbox. With available ratios ranging from 12.5 - 75:1, it offers a wide range of output speeds and a capability of up to 75 Nm torque in continuous operation and 120 Nm in intermittent operation. The GB9 gearbox is available with both composite and bronze gears, offering efficiencies of up to 90%. It is also perfectly suited for use with a range of Parvalux PMDC and BLDC motors, with the 15:1, 30:1 and 60:1 composite gear variants also available from our modular range. These are ready for online purchase and rapid turn-around on orders of up to 10 pieces.
