GB9 15:1 Bronze
|Gearbox Orientation||Right Angle|
|Gearbox Type||Worm Wheel|
|Gearbox Axial Load||600 N|
|Gearbox Radial Load||800 N|
|Gearbox Continuous Torque||75.0 Nm|
|Gearbox Intermittent Torque||120.0 Nm|

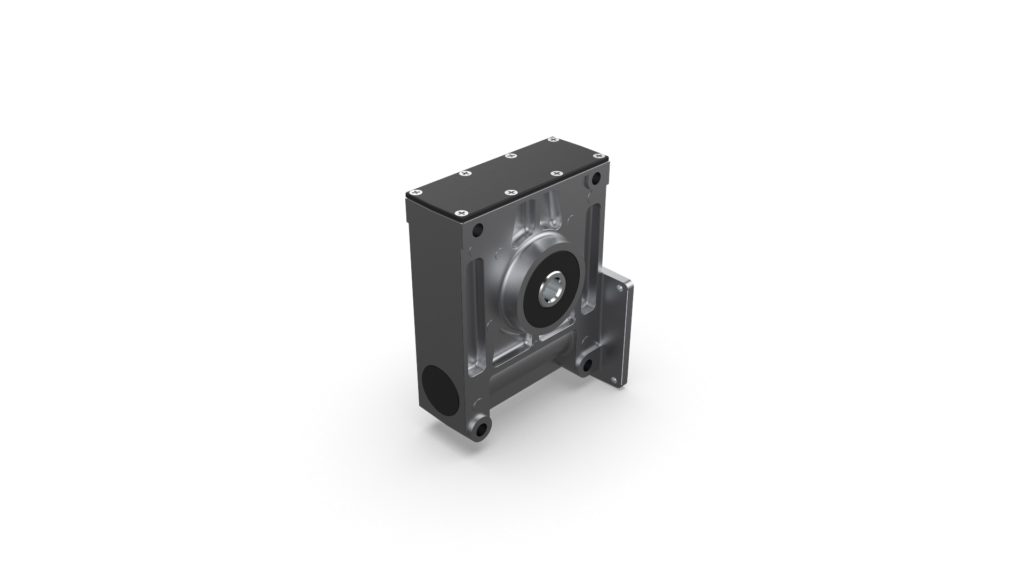

The Parvalux GB9 is a right-angle, worm wheel gearbox. With available ratios ranging from 12.5 – 75:1, it offers a wide range of output speeds and a capability of up to 75 Nm torque in continuous operation and 120 Nm in intermittent operation. The GB9 gearbox is available with both composite and bronze gears, offering efficiencies of up to 90%. It is also perfectly suited for use with a range of Parvalux PMDC and BLDC motors, with the 15:1, 30:1 and 60:1 composite gear variants also available from our modular range. These are ready for online purchase and rapid turn-around on orders of up to 10 pieces.
