| Gearbox part number | 827943 |
|---|---|
| Gearbox ratio | 160:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm Wheel |
| Gearbox gear material | Bronze / steel |
| Gearbox stages | 2 |
| Gearbox continuous torque | 120.0 Nm |
| Gearbox intermittent torque | 300.0 Nm |
| Gearbox axial load | 1750 N |
| Gearbox radial load | 2335 N |
| Gearbox efficiency | 60% |
| Gearbox backlash | 35 arc.min |
| Gearbox length | 151 mm |
| Gearbox weight | 3.50 Kg |
| Weight (kg) | 3.50 |

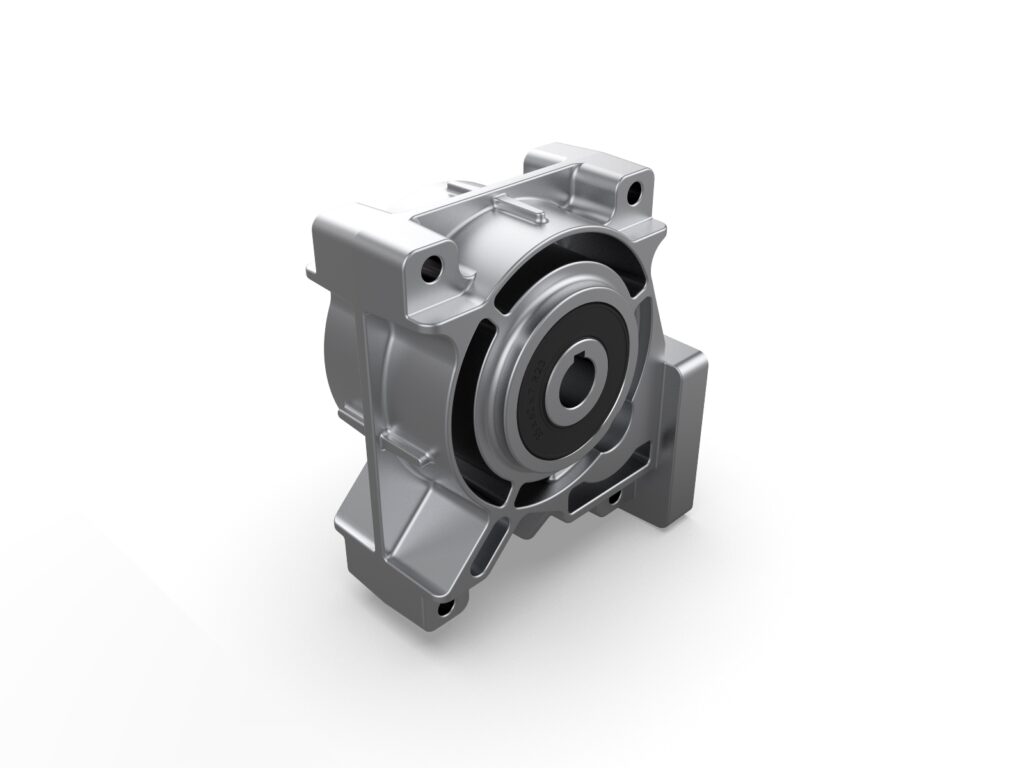

GB65 160:1 Steel / Bronze
Part No:827943
L: 151.0 × W: 90.0 × H: 174.0mm
GB65 160:1 Steel / Bronze - Right-angle worm Wheel gearbox - 160:1 gear ratio - Delivers up to 300.0 Nm of torque (S2 - 15 minutes) - Steel / Bronze gears - Available as part of the modular range. Configure online and order in quantities of up to 10 pieces direct from our website
The GB65 is a right-angle, worm Wheel gearbox. With available ratios ranging from 20 - 160:1, it offers a wide range of output speeds and a capability of up to 120 Nm torque in continuous operation and 300 Nm in intermittent operation. The GB65 gearbox is available with bronze and steel gears, offering efficiencies of up to 81% and is also perfectly suited for use with a range of Parvalux PMDC and BLDC motors.
