| Gearbox part number | GB36-15S7W |
|---|---|
| Gearbox ratio | 105:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm spur |
| Gearbox gear material | Composite |
| Gearbox stages | 2 |
| Gearbox continuous torque | 22.0 Nm |
| Gearbox intermittent torque | 22.0 Nm |
| Gearbox axial load | 177 N |
| Gearbox radial load | 353 N |
| Gearbox efficiency | 74% |
| Gearbox backlash | 50 - 75 arc.min |
| Gearbox length | 178 mm |
| Gearbox weight | 2.75 Kg |
| Weight (kg) | 2.75 |

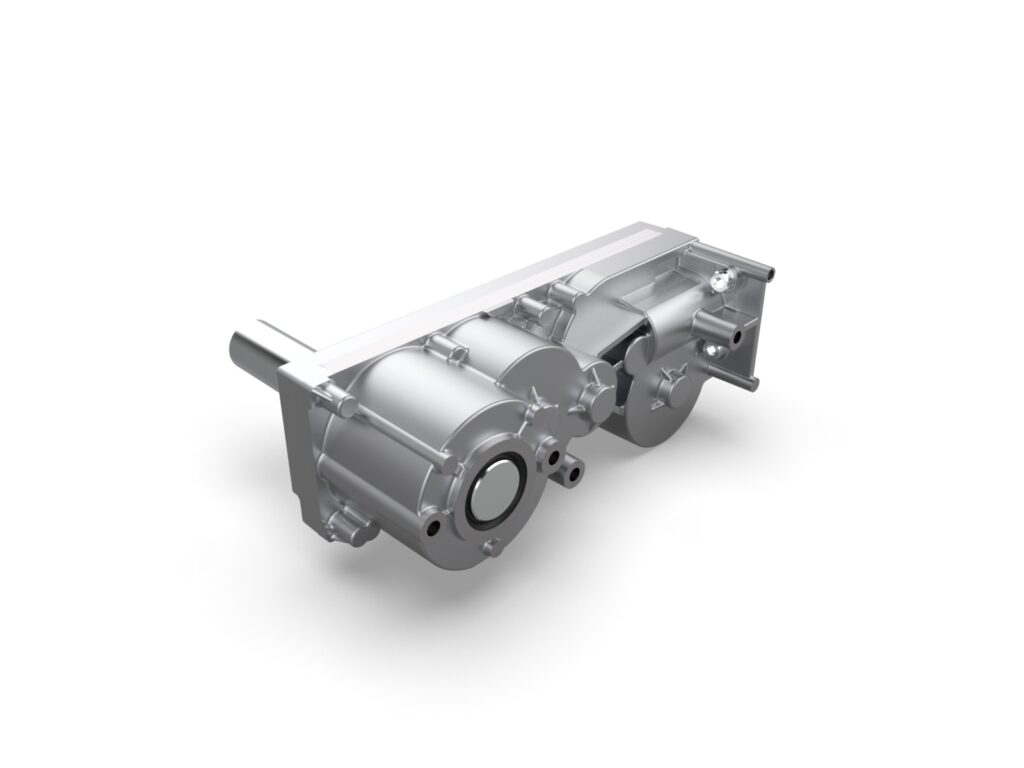

GB36 15:1 Spur / 7:1 Worm Composite
Part No:GB36-15S7W
L: 178.0 × W: 64.0 × H: 76.0mm
GB36 15:1 Spur / 7:1 Worm Composite - Right-angle worm-spur Wheel gearbox - 15:1 spur / 7:1 worm gear ratio - Delivers up to 22.0 Nm of torque (S2 - 15 minutes) - Composite gears - Standard gearbox - please contact your local sales engineer for details on your customisation options
The GB36 15:1 Spur / 7:1 Worm ratio gearbox can produce up to 22 Nm of continuous torque and offers efficiencies up to 74%, making it range perfect for markets Where efficiency is vital. To find out more or to order from the range, please contact our team.
