| Part number | 14100 |
|---|---|
| Gearbox ratio | 100:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm Wheel |
| Gear material | Bronze / steel |
| Gearbox stages | 2 |
| Gearbox continuous torque | 120.0 Nm |
| Gearbox intermittent torque | 300.0 Nm |
| Gearbox axial load | 1750 N |
| Gearbox radial load | 2335 N |
| Gearbox efficiency | 65% |
| Gearbox backlash | 35-65 arc.min |
| Gearbox length | 144 mm |
| Gearbox weight | 3.50 Kg |
| Weight (kg) | 3.5 |

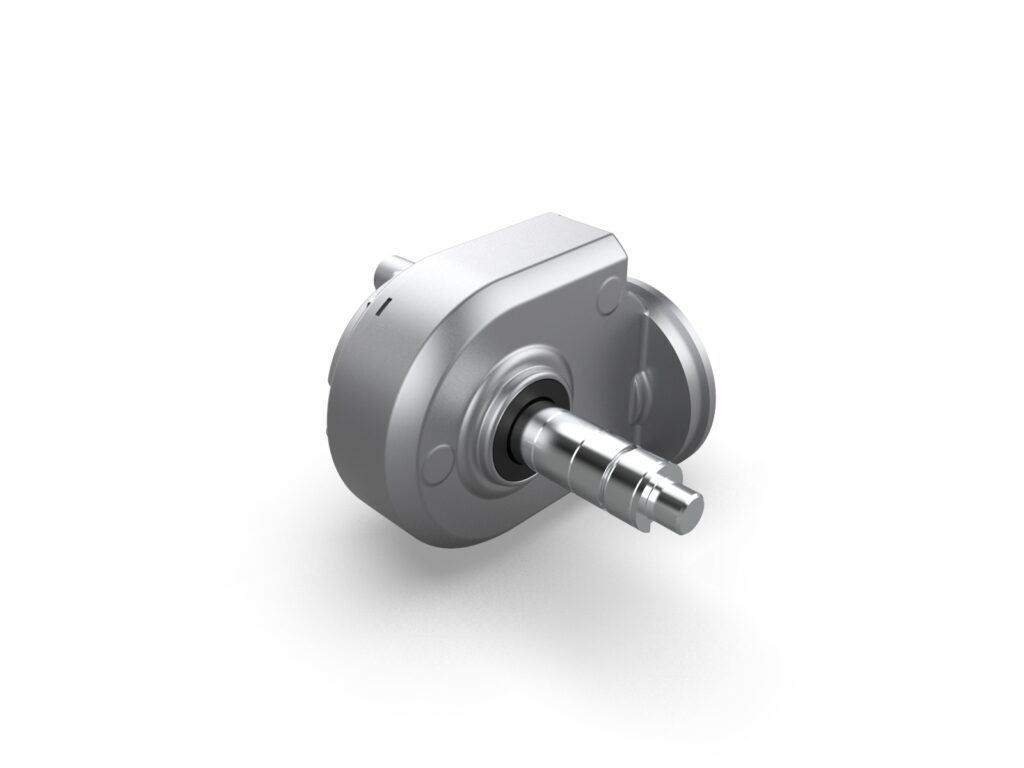

GB14 100:1 Steel / Bronze
Part No:14100
L: 144 × W: 100 × H: 121mm
GB14 100:1 Steel / Bronze - Right-angle worm Wheel gearbox - 100:1 gear ratio - Delivers up to 300.0 Nm of torque (S2 - 15 minutes) - Steel / Bronze gears - Standard gearbox - please contact your local sales engineer for details on your customisation options
The GB14 is a right-angle, worm wheel gearbox. With available ratios ranging from 20 - 160:1, it offers a wide range of output speeds and a capability of up to 120 Nm torque in continuous operation and 300 Nm in intermittent operation. The GB14 gearbox is available with bronze and steel gears, offering efficiencies of up to 81% and is also perfectly suited for use with a range of Parvalux PMDC and BLDC motors.
