| Gearbox part number | 735902 |
|---|---|
| Gearbox ratio | 60:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm Wheel |
| Gearbox gear material | Bronze |
| Gearbox stages | 1 |
| Gearbox continuous torque | 30.0 Nm |
| Gearbox intermittent torque | 48.0 Nm |
| Gearbox axial load | 600 N |
| Gearbox radial load | 800 N |
| Gearbox efficiency | 50% |
| Gearbox backlash | 10-25 arc.min |
| Gearbox length | 110 mm |
| Gearbox weight | 1.50 Kg |
| Weight (kg) | 1.50 |

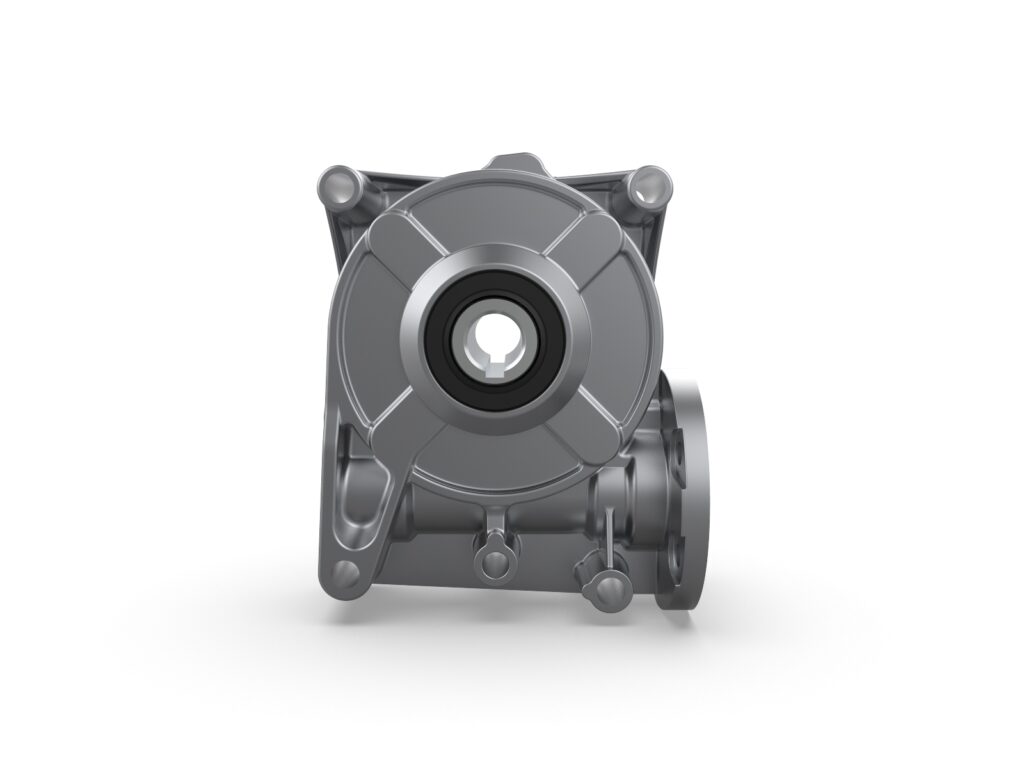

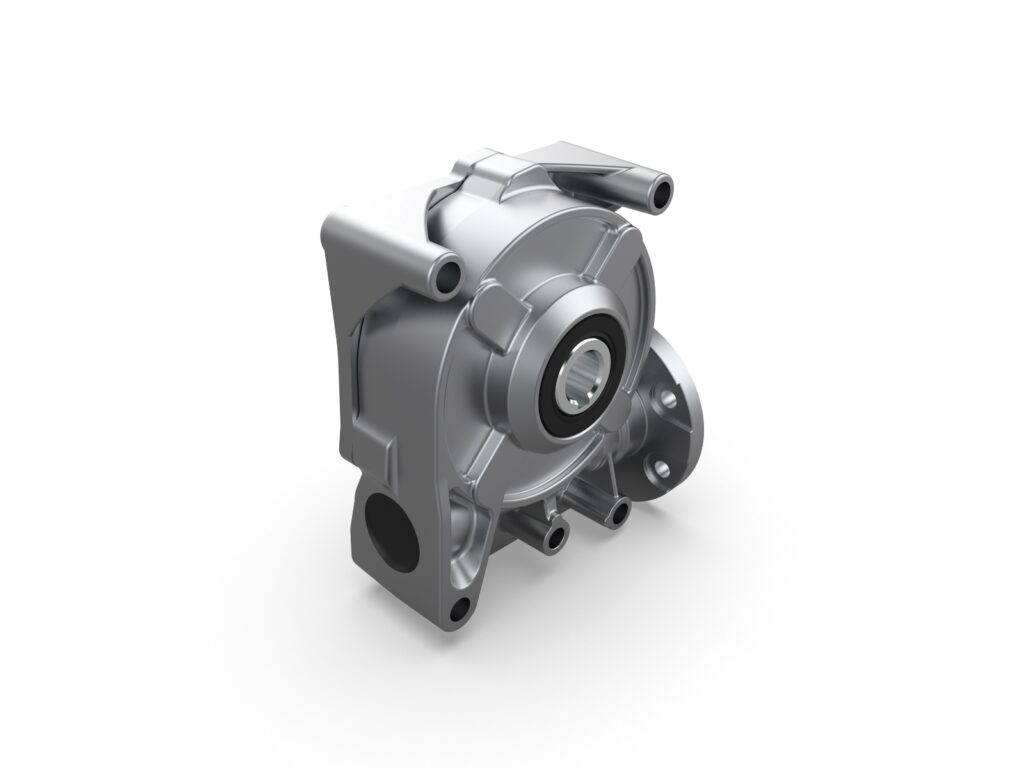

GB12 60:1 Bronze
Part No:735902
L: 110.0 × W: 73.0 × H: 137.0mm
GB12 60:1 Bronze - Right-angle worm Wheel gearbox - 60:1 gear ratio - Delivers up to 48.0 Nm of torque (S2 - 15 minutes) - Bronze gears - Available as part of the modular range. Configure online and order in quantities of up to 10 pieces direct from our website
The Parvalux GB12 is a right-angle, worm Wheel gearbox. With available ratios ranging from 12.5 - 75:1, it offers a wide range of output speeds and a capability of up to 30 Nm torque in continuous operation and 48 Nm in intermittent operation. The GB12 gearbox is available with both composite and bronze gears, offering efficiencies of up to 85%. It is also perfectly suited for use with a range of Parvalux PMDC and BLDC motors, with the 15:1, 30:1 and 60:1 bronze gear variants also available from our modular range. These are ready for online purchase and rapid turn-around on orders of up to 10 pieces.
