| Part number | V6310-3K12 |
|---|---|
| Motor type | PMDC |
| Nominal voltage | 12 V |
| Nominal power | 471 W |
| No load speed | 4771 rpm |
| No load current | 5.20 A |
| Nominal speed | 3000 rpm |
| Nominal continuous current | 67.0 A |
| Nominal continuous torque | 1.5 Nm |
| Max intermittent torque | 2.4 Nm |
| Stall current | 194.0 A |
| Stall torque | 4.60 Nm |
| Maximum efficiency | 67% |
| Thermal resistance (Ra) | 0.06 Ohms |
| Speed constant | 393 rpm/V |
| Torque constant | 0.024 Nm/A |
| Speed torque gradient | 1041 rpm/Nm |
| Rotor inertia | 9.64 x 10¯⁴ Kgcm² |
| Radial load | 200 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP21 |
| Enclosure | Ventilated |
| Insulation class | F |
| Reversible | Yes |
| Motor poles | 4 |
| Stack length | 100 mm |
| Motor length | 213 mm |
| Weight | 4.60 Kg |
| Weight (kg) | 4.6 |

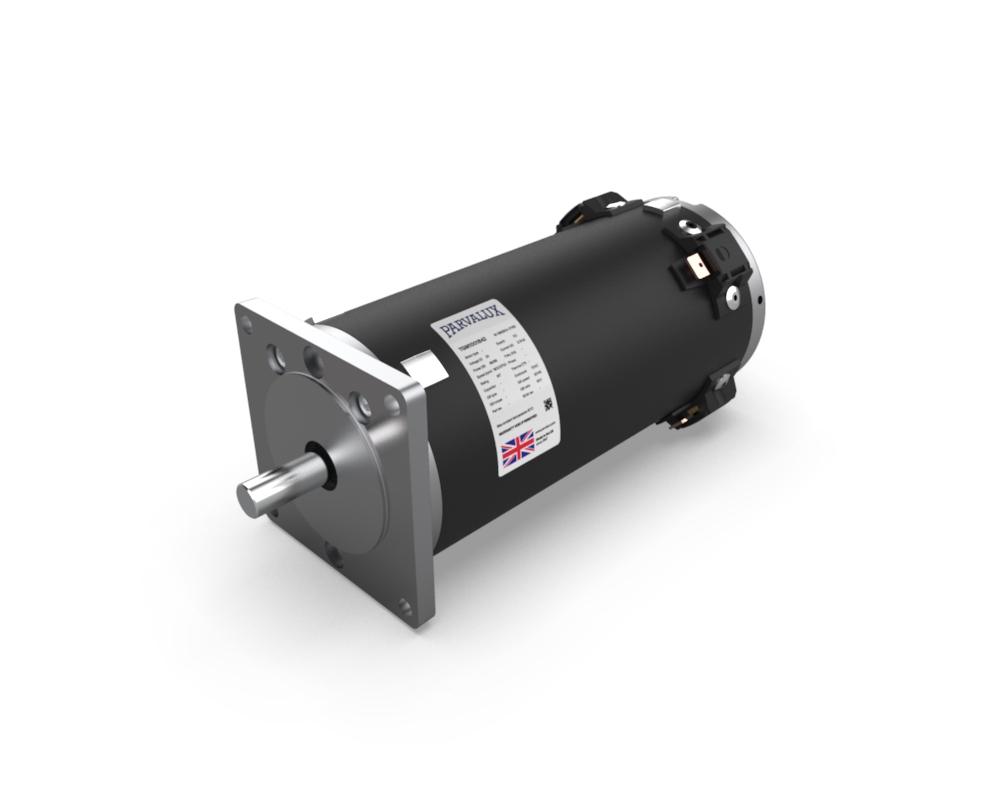

EPM63-100 Ventilated 12V 3000 RPM
Part No:V6310-3K12
L: 213 × W: 89 × H: 89mm
EPM63-100 Ventilated 12V 3000 RPM - PMDC motor - 12 V - 471 W - Delivers up to 2.40 Nm of torque - Standard motor - please contact your local sales engineer for details on your customisation options
The Parvalux Ventilated EPM63-100 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12V – 48V DC and output power up to 471 Watts. It is rated for continuous torque up to 1.5 Nm (S1) and maximum intermittent torque up to 2.4 Nm (S2 - 15 mins). It offers up to 78% efficiency. This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
