EPM50 Range

Speed (rpm)

3000

Power (Watts)

79 - 151

Volts (v)

12 - 48

Torque Cont. (Nm)

0.25 - 0.48

Torque Int (Nm)

0. 44 - 0.8

Part No:EPM50

L: 1190-155.0 × W: 73 × H: 73mm

EPM50 range - PMDC motor - 12 - 48 V - 79 - 151 W - Delivers up to 0.8 Nm of torque - Standard motor - please contact your local sales engineer for details on your customisation options

This product comes in multiple variations. Get in touch to discuss your exact requirements.

Product name Speed (rpm) Power (Watts) Volts (v) Torque Cont. (Nm) Torque Int (Nm)

PART NO: 5025123

EPM50-25 12V 3000RPM

 3000 79 12 0.25 0.44

PART NO: 5025243

EPM50-25 24V 3000RPM

 3000 79 24 0.25 0.44

PART NO: 5025403

EPM50-25 40V 3000RPM

 3000 79 40 0.25 0.44

PART NO: 5025483

EPM50-25 48V 3000RPM

 3000 79 48 0.25 0.44

PART NO: 5038123

EPM50-38 12V 3000RPM

 3000 94 12 0.3 0.5

PART NO: 5038243

EPM50-38 24V 3000RPM

 3000 94 24 0.3 0.5

PART NO: 5038403

EPM50-38 40V 3000RPM

 3000 94 40 0.3 0.5

PART NO: 5038483

EPM50-38 48V 3000RPM

 3000 94 48 0.3 0.5

PART NO: 5050123

EPM50-50 12V 3000RPM

 3000 123 12 0.39 0.65

PART NO: 5050243

EPM50-50 24V 3000RPM

 3000 123 24 0.39 0.65

PART NO: 5050403

EPM50-50 40V 3000RPM

 3000 123 40 0.39 0.65

PART NO: 5050483

EPM50-50 48V 3000RPM

 3000 123 48 0.39 0.65

PART NO: 5063123

EPM50-63 12V 3000RPM

 3000 151 12 0.48 0.8

PART NO: 5063243

EPM50-63 24V 3000RPM

 3000 151 24 0.48 0.8

PART NO: 5063403

EPM50-63 40V 3000RPM

 3000 151 40 0.48 0.8

PART NO: 5063483

EPM50-63 48V 3000RPM

 3000 151 48 0.48 0.8

Part no 5025123

EPM50-25 12V 3000RPM

Speed (rpm) 3000
Power (Watts) 79
Volts (v) 12
Torque Cont. (Nm) 0.25
Torque Int (Nm) 0.44
View Datasheet

Part no 5025243

EPM50-25 24V 3000RPM

Speed (rpm) 3000
Power (Watts) 79
Volts (v) 24
Torque Cont. (Nm) 0.25
Torque Int (Nm) 0.44
View Datasheet

Part no 5025403

EPM50-25 40V 3000RPM

Speed (rpm) 3000
Power (Watts) 79
Volts (v) 40
Torque Cont. (Nm) 0.25
Torque Int (Nm) 0.44
View Datasheet

Part no 5025483

EPM50-25 48V 3000RPM

Speed (rpm) 3000
Power (Watts) 79
Volts (v) 48
Torque Cont. (Nm) 0.25
Torque Int (Nm) 0.44
View Datasheet

Part no 5038123

EPM50-38 12V 3000RPM

Speed (rpm) 3000
Power (Watts) 94
Volts (v) 12
Torque Cont. (Nm) 0.3
Torque Int (Nm) 0.5
View Datasheet

Part no 5038243

EPM50-38 24V 3000RPM

Speed (rpm) 3000
Power (Watts) 94
Volts (v) 24
Torque Cont. (Nm) 0.3
Torque Int (Nm) 0.5
View Datasheet

Part no 5038403

EPM50-38 40V 3000RPM

Speed (rpm) 3000
Power (Watts) 94
Volts (v) 40
Torque Cont. (Nm) 0.3
Torque Int (Nm) 0.5
View Datasheet

Part no 5038483

EPM50-38 48V 3000RPM

Speed (rpm) 3000
Power (Watts) 94
Volts (v) 48
Torque Cont. (Nm) 0.3
Torque Int (Nm) 0.5
View Datasheet

Part no 5050123

EPM50-50 12V 3000RPM

Speed (rpm) 3000
Power (Watts) 123
Volts (v) 12
Torque Cont. (Nm) 0.39
Torque Int (Nm) 0.65
View Datasheet

Part no 5050243

EPM50-50 24V 3000RPM

Speed (rpm) 3000
Power (Watts) 123
Volts (v) 24
Torque Cont. (Nm) 0.39
Torque Int (Nm) 0.65
View Datasheet

Part no 5050403

EPM50-50 40V 3000RPM

Speed (rpm) 3000
Power (Watts) 123
Volts (v) 40
Torque Cont. (Nm) 0.39
Torque Int (Nm) 0.65
View Datasheet

Part no 5050483

EPM50-50 48V 3000RPM

Speed (rpm) 3000
Power (Watts) 123
Volts (v) 48
Torque Cont. (Nm) 0.39
Torque Int (Nm) 0.65
View Datasheet

Part no 5063123

EPM50-63 12V 3000RPM

Speed (rpm) 3000
Power (Watts) 151
Volts (v) 12
Torque Cont. (Nm) 0.48
Torque Int (Nm) 0.8
View Datasheet

Part no 5063243

EPM50-63 24V 3000RPM

Speed (rpm) 3000
Power (Watts) 151
Volts (v) 24
Torque Cont. (Nm) 0.48
Torque Int (Nm) 0.8
View Datasheet

Part no 5063403

EPM50-63 40V 3000RPM

Speed (rpm) 3000
Power (Watts) 151
Volts (v) 40
Torque Cont. (Nm) 0.48
Torque Int (Nm) 0.8
View Datasheet

Part no 5063483

EPM50-63 48V 3000RPM

Speed (rpm) 3000
Power (Watts) 151
Volts (v) 48
Torque Cont. (Nm) 0.48
Torque Int (Nm) 0.8
View Datasheet
Part number EPM50
Motor type PMDC
Nominal voltage 12 - 48 V
Nominal power 79 - 151 W
No load speed 3598 - 4376 rpm
No load current 0.22 - 1.75 A
Nominal speed 3000 rpm
Nominal continuous current 2.6 - 18.0 A
Nominal continuous torque 0. 25 - 0.48 Nm
Max intermittent torque 0.44 - 0.80 Nm
Stall current 11.5 - 79.0 A
Stall torque 0.81 - 3.30 Nm
Maximum efficiency 61 - 81%
Thermal resistance (Ra) 0.15 - 4.19 Ohms
Speed constant 74.0 - 1768.0 rpm/V
Torque constant 0.024 - 0.130 Nm/A
Speed torque gradient 1120 - 5800 rpm/Nm
Rotor inertia 1.41 x 10¯⁴ - 2.48 x 10¯⁴ Kgcm²
Radial load 150 N
Max ambient temperature 40°C
Motor IP rating IP44
Enclosure Enclosed
Insulation class F
Reversible Yes
Motor poles 2
Stack length 25 - 63 mm
Motor length 119 - 155 mm
Weight 1.40 - 2.15 Kg
Weight (kg) 140-2.15

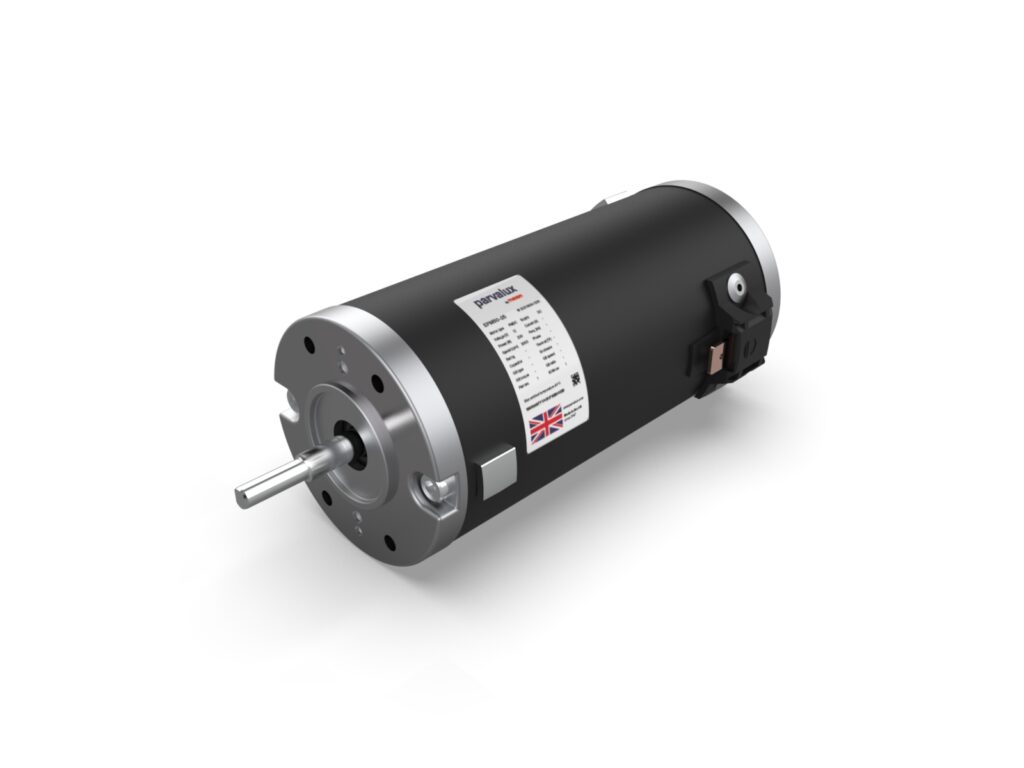

The Parvalux EPM50 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12 - 48V DC and power output up to 151 watts. It provides up to 0.48 Nm of torque in continuous operation (S1) and up to 0.80 Nm of torque in intermittent operation (S2 - 15 min). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
