| Part number | 5063481275C |
|---|---|
| Voltage | 48 V |
| Nominal power | 151 W |
| Nominal speed | 40 rpm |
| Combination gear ratio | 75:1 |
| Combination gear material | Composite |
| Nominal torque | 18.0 Nm |
| Intermittent torque | 29.0 Nm |
| Motor part number | 5063483 |
| Motor type | PMDC |
| Motor voltage | 48 V |
| Motor power | 151 W |
| Motor output speed | 3000 rpm |
| Motor continuous current | 4.1 A |
| Motor no load speed | 3598 rpm |
| Motor no load current | 0.22 A |
| Motor continuous torque | 0.48 Nm |
| Motor intermittent torque | 0.80 Nm |
| Motor length (L) | 155 mm |
| Motor weight | 2.15 Kg |
| Gearbox part number | GB12-75B |
| Gearbox ratio | 75:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm wheel |
| Gearbox max continuous torque | 18.0 Nm |
| Gearbox max intermittent torque | 29.0 Nm |
| Gearbox efficiency | 50% |
| Gearbox gear material | Composite |
| Gearbox axial load | 600 N |
| Gearbox radial load | 800 N |
| Gearbox length | 110 mm |
| Gearbox weight | 1.10 Kg |
| Weight (kg) | 3.30 |

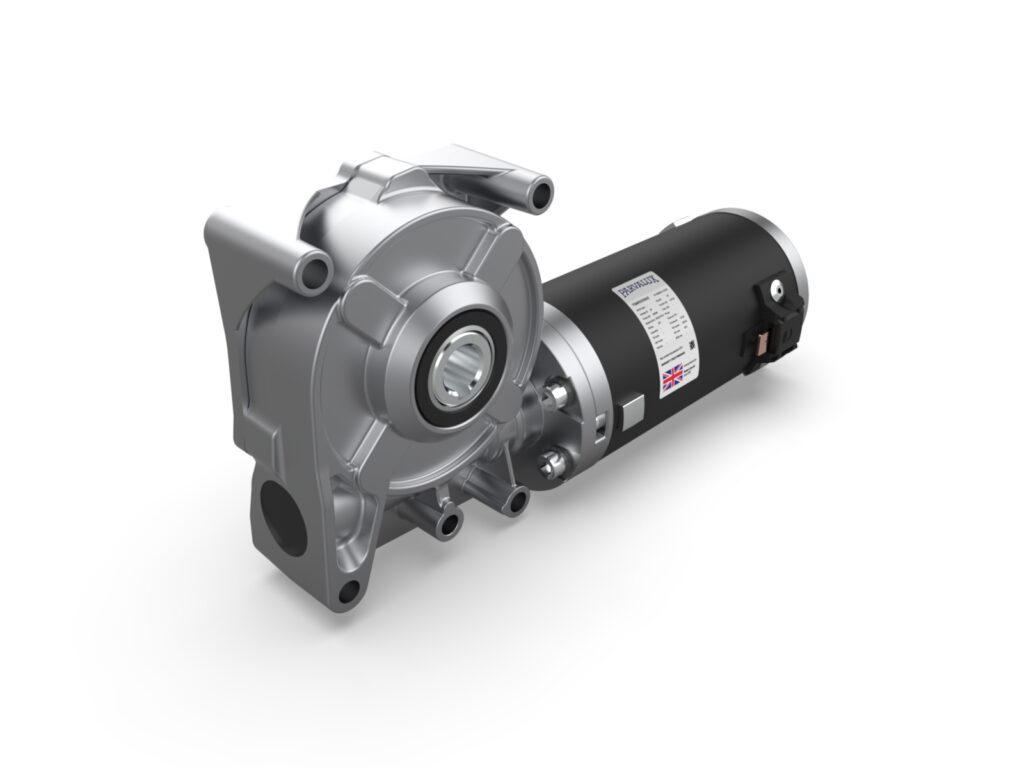

EPM50-63 48V 3000 RPM – GB12 75:1 Composite
Part No:5063481275C
L: 265.0 × W: 90.0 × H: 137.0mm
EPM50-63 48V 3000 RPM - GB12 60:1 Composite - PMDC right-angle geared motor - 48 V - 151 W - Delivers up to 29.0 Nm of torque - Standard combination - please contact your local sales engineer for details on your customisation options
The Parvalux EPM50-63 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12V - 48V DC and output power up to 94 Watts. When combined with our GB12 gearbox, the wide selection of gear ratios, as well as the choice of bronze or composite gears, allows for a nominal continuous output torque of up to 18.0 Nm (S1) and maximum intermittent torque of up to 29.0 Nm (S3). Contact our sales team today to discuss the additional options available with this unit, including brakes, encoders, output shaft customisation, etc.
