| Part number | 5063123 |
|---|---|
| Motor type | PMDC |
| Nominal voltage | 12 V |
| Nominal power | 151 W |
| No load speed | 4119 rpm |
| No load current | 1.30 A |
| Nominal speed | 3000 rpm |
| Nominal continuous current | 18.0 A |
| Nominal continuous torque | 0.48 Nm |
| Max intermittent torque | 0.80 Nm |
| Stall current | 79.0 A |
| Stall torque | 2.30 Nm |
| Maximum efficiency | 80% |
| Thermal resistance Ra | 0.15 Ohms |
| Speed constant | 330.0 rpm/V |
| Torque constant | 0.030 Nm/A |
| Speed torque gradient | 1835 rpm/Nm |
| Rotor inertia | 2.48 x 10¯⁴ Kgcm² |
| Radial load | 150 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP44 |
| Enclosure | Enclosed |
| Insulation class | F |
| Reversible | Yes |
| Motor poles | 2 |
| Stack length | 63 mm |
| Motor length | 155 mm |
| Weight | 2.15 Kg |
| Weight (kg) | 2.15 |

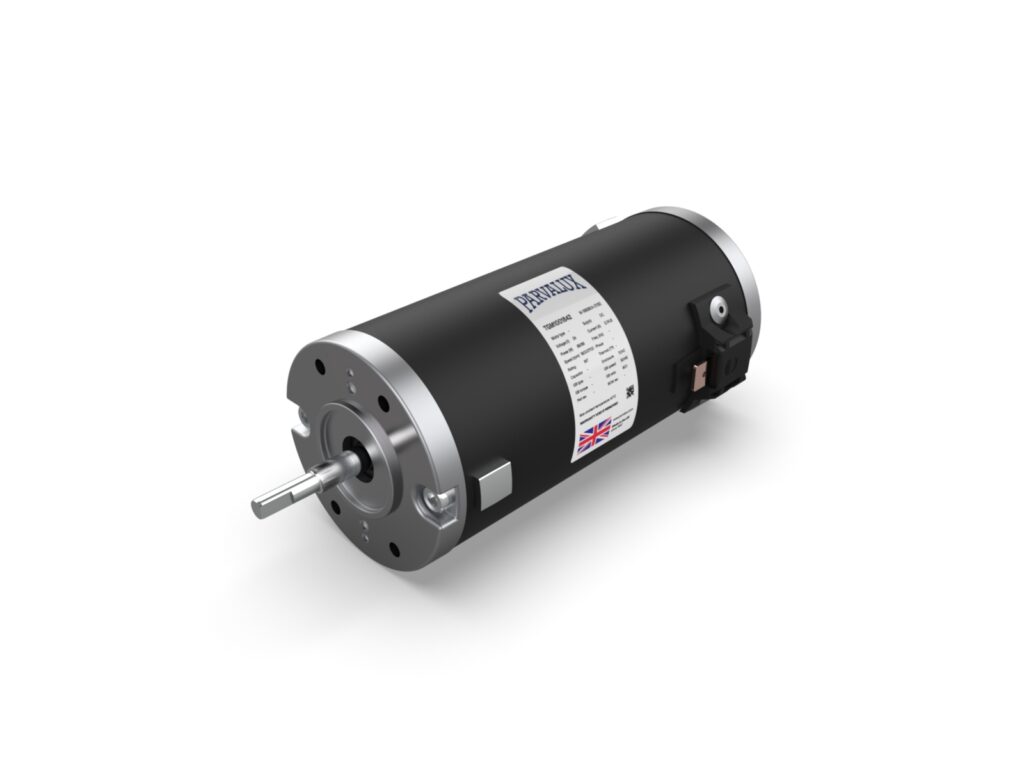

EPM50-63 12V 3000RPM
Part No:5063123
L: 155 × W: 73 × H: 73mm
EPM50-63 12V 3000 RPM - PMDC motor - 12 V - 151 W - Delivers up to 0.80 Nm of torque - Standard motor - please contact your local sales engineer for details on your customisation options
The Parvalux EPM50-63 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12 - 48V DC and power output up to 151 watts. It provides up to 0.48 Nm of torque in continuous operation (S1) and up to 0.80 Nm of torque in intermittent operation (S2 - 15 min). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
