EPM50-38 48V 3000 RPM – GB12 12.5:1 Bronze

Type

PMDC

Volts

48

Watts

94

RPM

240

Nm (Cont)

3

Part No:5038481212B

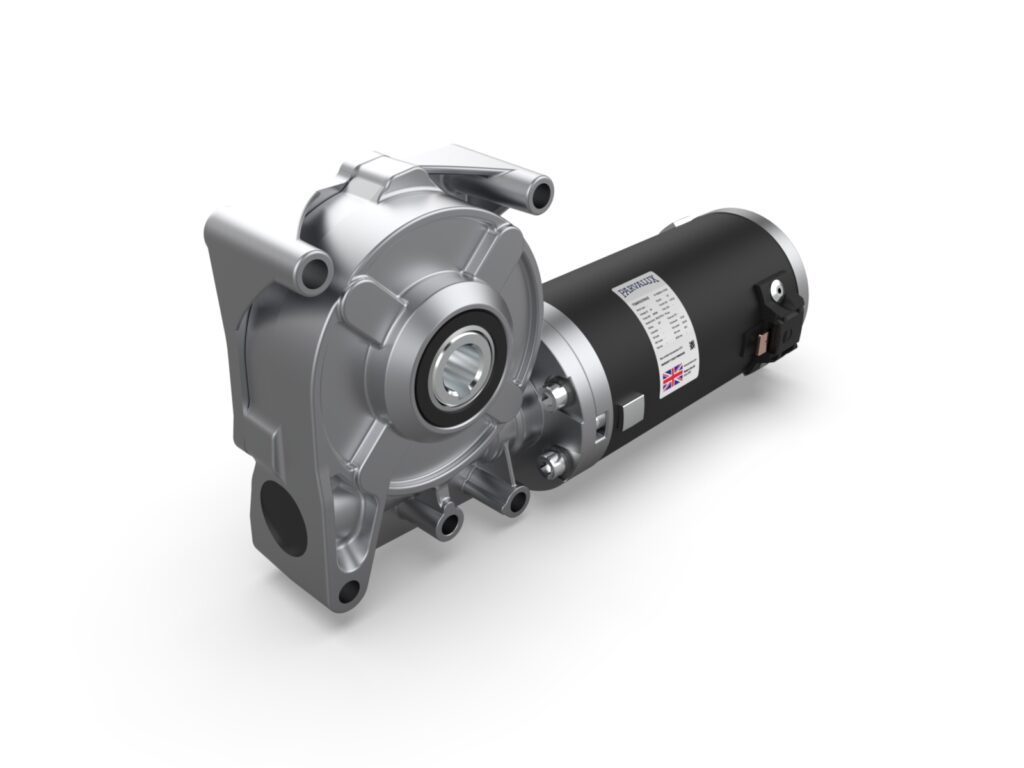

EPM50-38 48V 3000 RPM PMDC motor with GB12 12.5:1 Standard, bronze gears

This product cannot be purchased online.

Enquire
Motor Type PMDC
Motor Poles 2
Nominal continuous torque 3.0 Nm
Max intermittent torque 5.0 Nm
Nominal power 94 W
Nominal speed 240 rpm
Nominal continuous current 8.0 A
No load speed 314 rpm
No load current 0.29 A
Stack length 38 mm
Motor IP rating IP44
Gearbox Orientation Right Angle
Gearbox Type Worm Wheel
Gearbox Ratio 12.5:1 ratio
Gear Material Bronze
Gearbox Stages 1
Gearbox Efficiency 80%
Gearbox Axial Load 600 N
Gearbox Radial Load 800 N
Backlash 10-25 arc.min
Max ambient temperature 40°C
Weight 3.5 Kg
Enclosure Enclosed
Insulation class F
Reversible Yes
Weight (kg) 3.5

The Parvalux EPM50-38 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12V – 48V DC and output power up to 94 Watts. When combined with our GB12 gearbox, the wide selection of gear ratios, as well as the choice of bronze or composite gears, allows for a nominal continuous output torque of up to 11.3 Nm (S1) and maximum intermittent torque of up to 18.8 Nm (S3). Contact our sales team today to discuss the additional options available with this unit, including brakes, encoders, output shaft customisation, etc.
