| Power Supply (VDD) | 3.6 - 5.5 V |
|---|---|
| Current Consumption | 6.0 mA |
| Output high level | 0.8 V |
| Output low level | 0.4 V |
| Output current | 2.0 mA |
| Rise / fall time | 30 ns |
| Channels | quadrature A, B, and X index |
| Waveform | CMOS voltage square wave |
| Phase Difference | 90° |
| Quadrature resolutions | 48, 96, 100, 125, 192, 200, 250, 256, 384, 400, 500, 512, 800, 1000, 1024, 2048 PPR |
| Index | one pulse per 360° rotation |
| Accuracy | 0.25° |
| Quadrature duty cycle (at each resolution) | 47 - 53% |
| Motor shaft length | 9mm |
| Weight | 20.5g |
| Rotational speed (at each resolution) | 7500 - 15000 rpm |
| Operating temperature | -40 - 100°C |
| Humidity (non-condensing) | 95% |
| Vibration (20~500 Hz, 1 hour each XYZ) | 10G |
| Shock (11 ms, ±XYZ direction) | 50G |
| RoHS | 2011 / 65 / EU |

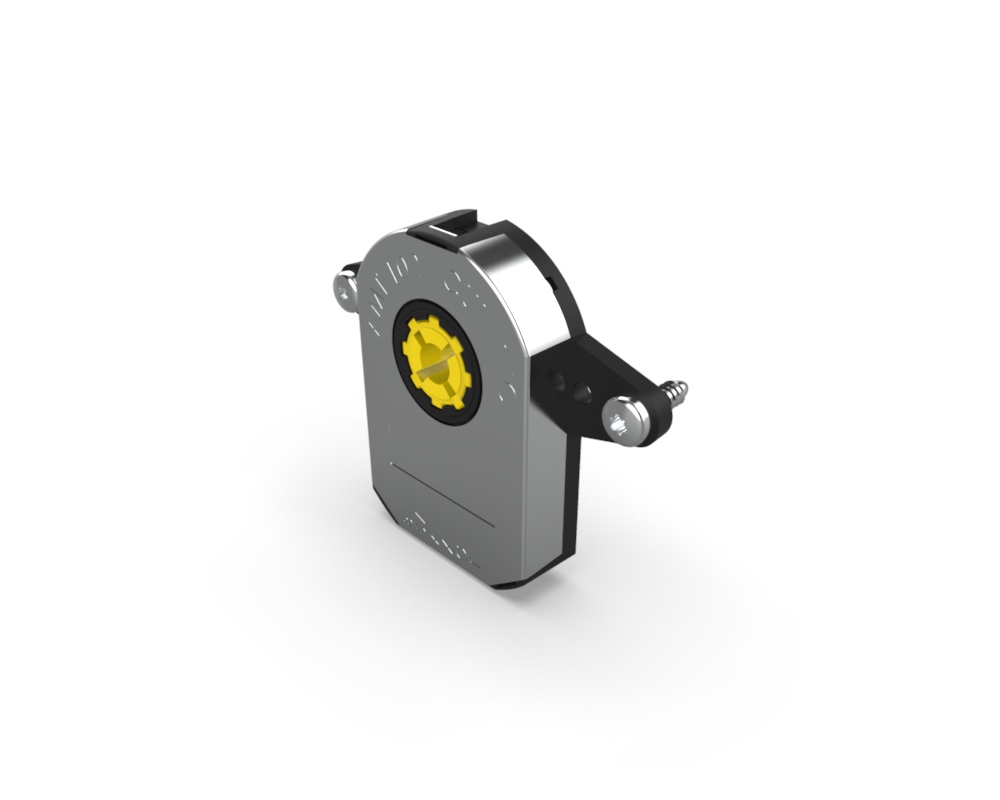

Incremental Encoder Kit (5-pin)
Part No:735912
Volume Discounts
| Quantity | Price |
|---|---|
| 1 - 4 | £249.58 / unit |
| 5 - 10 | £187.18 / unit |
| 10+ | Please Enquire |
28 in stock
