| Part number | 781106 |
|---|---|
| Motor type | PMDC |
| Nominal voltage | 12 V |
| Nominal power | 283 W |
| No load speed | 3750 rpm |
| No load current | 3.4 A |
| Nominal speed | 2500 rpm |
| Nominal continuous current | 33.2 A |
| Nominal continuous torque | 0.90 Nm |
| Max intermittent torque | 1.50 Nm |
| Stall current | 83.5 A |
| Stall torque | 2.38 Nm |
| Maximum efficiency | 75% |
| Thermal resistance Ra | 0.116 Ohms |
| Speed constant | 311.3 rpm/V |
| Torque constant | 0.030 Nm/A |
| Speed torque gradient | 1667 rpm/Nm |
| Rotor inertia | 8.65 x 10¯⁴ Kgm² |
| Radial load | 200 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP54 |
| Enclosure | Enclosed |
| Insulation class | F |
| Reversible | Yes |
| Motor poles | 2 |
| Stack length | 75 mm |
| Motor length | 183 mm |
| Weight | 4.00 Kg |
| Weight (kg) | 4.00 |

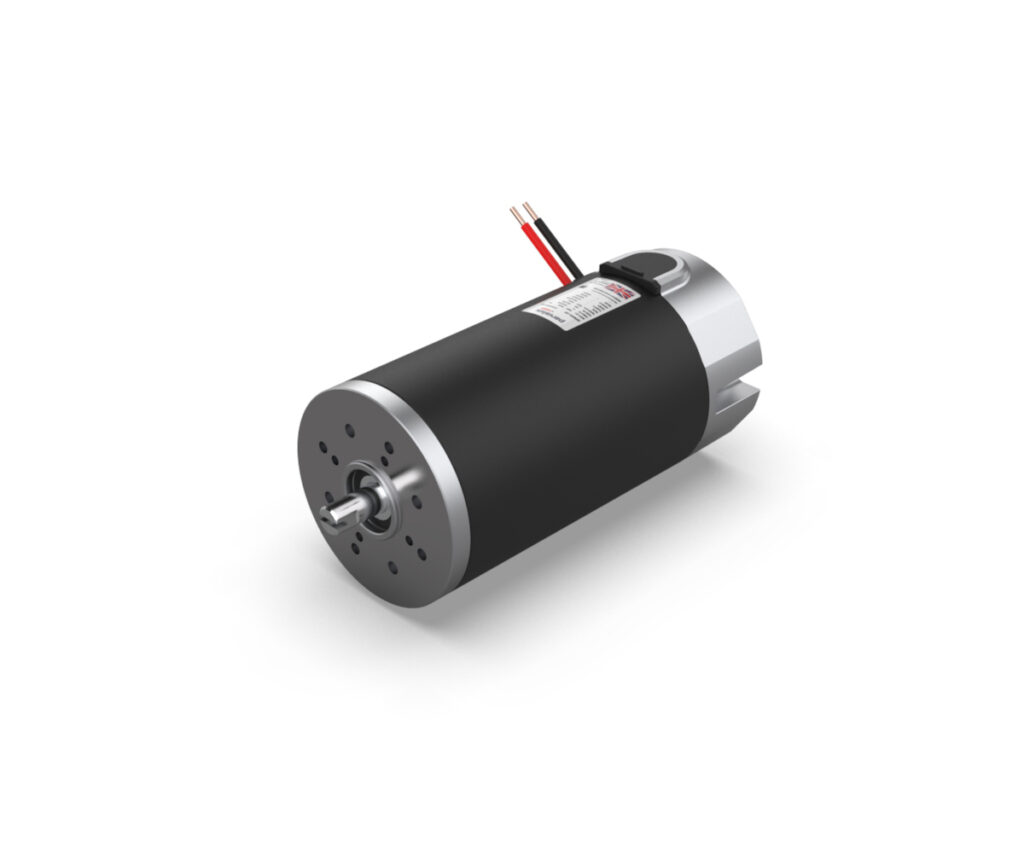

BRx90-75 12V 2500RPM
Part No:781106
L: 183.0 × W: 90.0 × H: 90.0mm
BRx90-75 12V 2500 RPM - PMDC motor - 12 V - 236 W - Delivers up to 1.50 Nm of torque - Modular motor - configure online and order in quantities of up to 10 pieces direct from our website
The Parvalux BRx90-50 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12v - 48v DC with an output power of up to 210 Watts. It is rated for nominal continuous torque up to 0.67 Nm (S1) and maximum intermittent torque up to 1.17 Nm (S2 - 15 mins). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
