| Part number | 781106-827936 |
|---|---|
| Voltage | 12V |
| Nominal power | 236 W |
| Nominal speed | 31 rpm |
| Combination gear ratio | 80:1 |
| Combination gear material | Steel / bronze |
| Nominal torque | 50.4 Nm |
| Intermittent torque | 84.0 Nm |
| Motor part number | 781106 |
| Motor type | PMDC |
| Motor voltage | 12 V |
| Motor power | 236 W |
| Motor output speed | 2500 rpm |
| Motor continuous current | 33.2 A |
| Motor no load speed | 3750 rpm |
| Motor no load current | 3.4 A |
| Motor continuous torque | 0.90 Nm |
| Motor intermittent torque | 1.50 Nm |
| Motor length L | 183 mm |
| Motor weight | 4.00 Kg |
| Gearbox part number | 827936 |
| Gearbox ratio | 80:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm wheel |
| Gearbox max continuous torque | 120.0 Nm |
| Gearbox max intermittent torque | 300.0 Nm |
| Gearbox efficiency | 70% |
| Gearbox gear material | Bronze / steel |
| Gearbox axial load | 1750 N |
| Gearbox radial load | 2335 N |
| Gearbox length | 151 mm |
| Gearbox weight | 3.50 Kg |
| Weight (kg) | 7.60 |

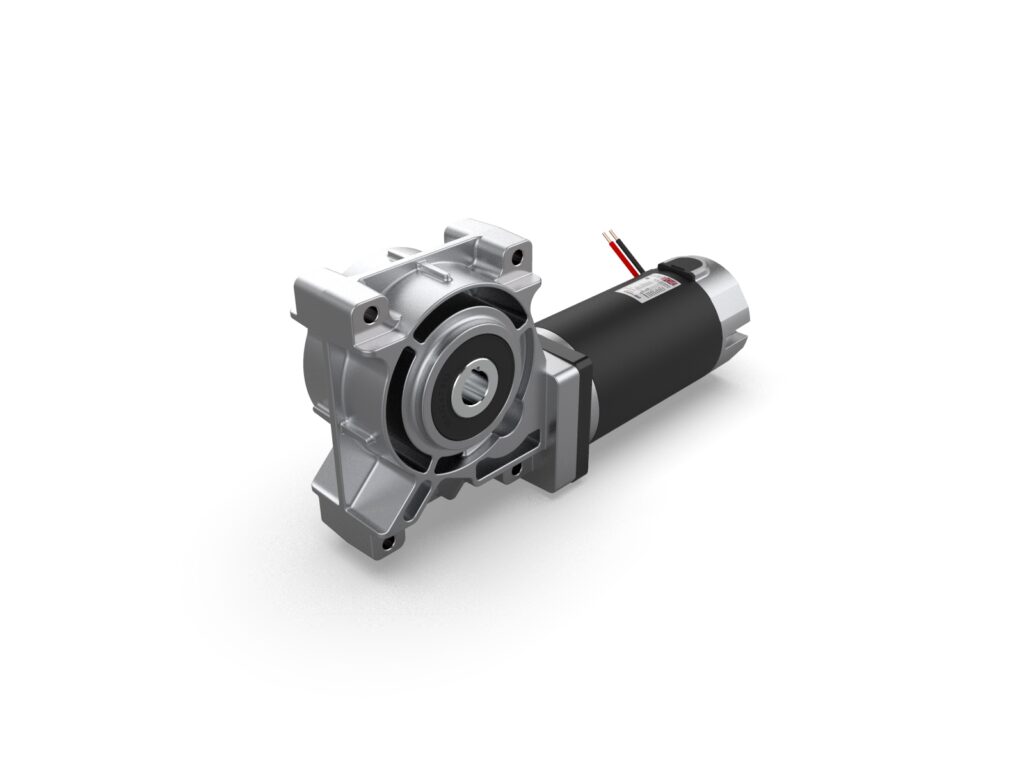

BRx90-75 12V 3000RPM – GB65 80:1 Steel / Bronze
Part No:781106-827936
L: 346.0 × W: 90.0 × H: 178.0mm
BRx90-75 12V 3000RPM - GB65 80:1 range - PMDC geared right-angle motor - 12 V - Delivers up to 84.0 Nm of torque (S2 - 15 minutes) - Bronze / steel gears - Available as part of the modular range. Configure online and order in quantities of up to 10 pieces direct from our website
Volume Discounts
| Quantity | Price |
|---|---|
| 1 - 4 | £1,193.44 / unit |
| 5 - 10 | £895.08 / unit |
| 10+ | Please Enquire |
The Parvalux BRx90-75-GB65 range is a modular motor and gearbox combination, offering motor voltages of 12 - 48 V and gearbox ratios of 20 - 160:1. The pairing of this motor and gearbox offers between 16 - 150 rpm and up to 144.0 Nm of torque in intermittent operation (S2 - 15 minutes). With many of the ratios of the GB65 available as part of the modular range, you can also add accessories such as brakes, encoders, and shaft extension kits to fine tune your combination to perfectly meet the requirements of your application.
