| Motor Type | PMDC |
|---|---|
| Motor Poles | 2 |
| Rated Motor Power | 210 W |
| Stack Length | 50 mm |
| Motor IP Rating | IP54 |
| Gearbox Orientation | Right Angle |
| Gearbox Type | Worm Wheel |
| Gearbox Ratio | 40:1 ratio |
| Gear Material | Bronze / steel |
| Gearbox Stages | 1 |
| Gearbox Efficiency | 76% |
| Gearbox Radial Load | 2335 N |
| Motor length | 153 mm |
| Gearbox length | 151 mm |
| Weight (kg) | 7.2 |

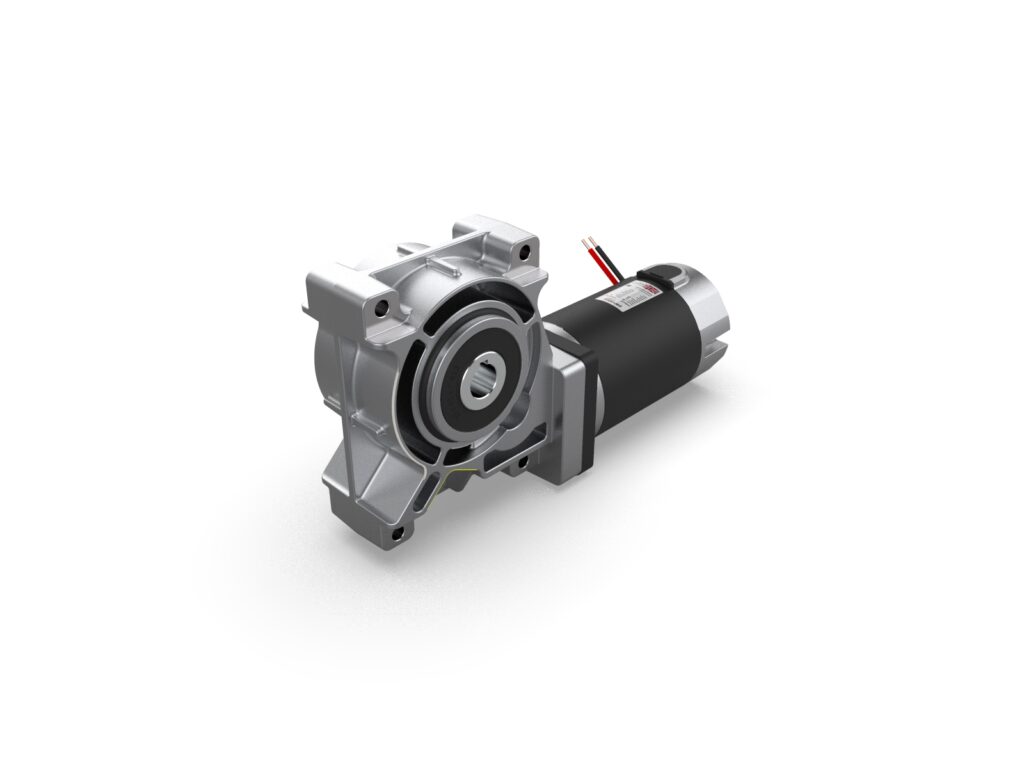

BRx90-50 24V 3000RPM – GB65 40:1 Steel / Bronze
Part No:781103-853270
L: 316 × W: 90 × H: 178mm
BRx90-50 24V 3000RPM - GB65 40:1 range - PMDC geared right-angle motor - 24 V - Delivers up to 35.6 Nm of torque (S2 - 15 minutes) - Bronze / steel gears - Available as part of the modular range. Configure online and order in quantities of up to 10 pieces direct from our website
The Parvalux BRx90-50-GB65 range is a modular motor and gearbox combination, offering motor voltages of 12 - 48 V and gearbox ratios of 80 - 160:1. The pairing of this motor and gearbox offers between 19 - 150 rpm and up to 112.3 Nm of torque in intermittent operation (S2 - 15 minutes). With many of the ratios of the GB65 available as part of the modular range, you can also add accessories such as brakes, encoders, and shaft extension kits to fine tune your combination to perfectly meet the requirements of your application.
