| Part number | BRx70 |
|---|---|
| Motor type | PMDC |
| Nominal voltage | 12 - 48 V |
| Nominal power | 79 - 157 W |
| No load speed | 3167 - 3970 rpm |
| No load current | 0.28 - 1.80 A |
| Nominal speed | 3000 rpm |
| Nominal continuous current | 2.1 - 21.0 A |
| Nominal continuous torque | 0.25 - 0.50 Nm |
| Max intermittent torque | 0.42 - 0.88 Nm |
| Stall current | 18.7 - 70.7 A |
| Stall torque | 1.80 - 3.60 Nm |
| Maximum efficiency | 71 - 82% |
| Thermal resistance Ra | 0.10 - 1.86 Ohms |
| Speed constant | 66.6 - 333.1 rpm/V |
| Torque constant | 0.026 - 0.130 Nm/A |
| Speed torque gradient | 985 - 2423 rpm/Nm |
| Rotor inertia | 1.83 x 10¯⁴ - 2.5 x 10¯⁴ Kgm² |
| Radial load | 200 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP54 |
| Enclosure | Enclosed |
| Insulation class | F |
| Reversible | Yes |
| Motor poles | 2 |
| Stack length | 40 - 60 mm |
| Motor length | 125 - 146 mm |
| Weight | 1.86 - 2.1 Kg |
| Weight (kg) | 186-2.10 |

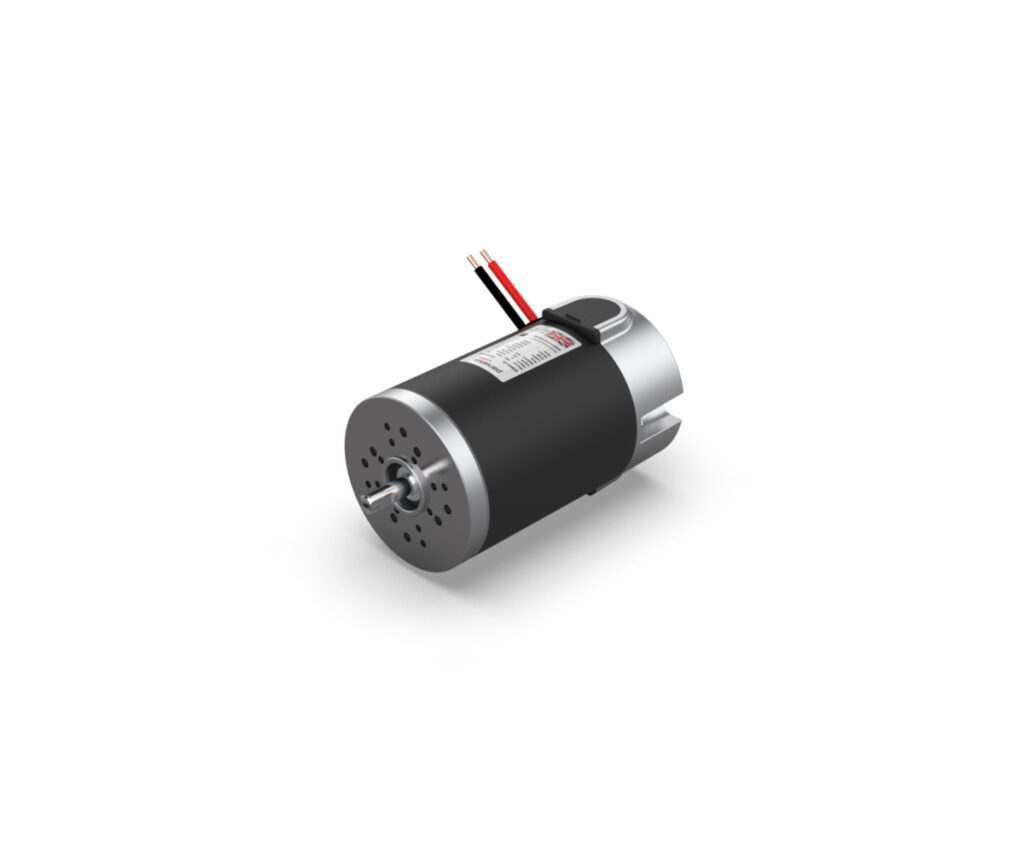

BRx70 Range
Part No:BRx70
L: 1250-146.0 × W: 74.0 × H: 74.0mm
BRx70 range - PMDC motor - 12 - 48 V - 79 - 157 W - Delivers up to 0.88 Nm of torque - Modular motor - configure online and order in quantities of up to 10 pieces direct from our website
This product comes in multiple variations. Get in touch to discuss your exact requirements.
| Product name | Speed (rpm) | Power (Watts) | Volts (v) | Torque Cont. (Nm) | Torque Int (Nm) | |
|---|---|---|---|---|---|---|
|
PART NO: 781095 BRx70-60 12V 3000RPM |
3000 | 157 | 12 | 0.5 | 0.88 | |
|
PART NO: 781096 BRx70-60 24V 3000RPM |
3000 | 157 | 24 | 0.5 | 0.88 | |
|
PART NO: 781097 BRx70-60 48V 3000RPM |
3000 | 157 | 48 | 0.5 | 0.88 | |
|
PART NO: 781092 BRx70-40 12V 3000RPM |
3000 | 79 | 12 | 0.25 | 0.42 | |
|
PART NO: 781093 BRx70-40 24V 3000RPM |
3000 | 79 | 24 | 0.25 | 0.42 | |
|
PART NO: 781094 BRx70-40 48V 3000RPM |
3000 | 79 | 48 | 0.25 | 0.42 |
The Parvalux BRx70-60 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12v - 48v DC and output power up to 120 Watts. It is rated for nominal continuous torque up to 0.38 Nm (S1) and maximum intermittent torque up to 0.88 Nm (S2 - 15 mins). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
