| Part number | 781095-888018 |
|---|---|
| Voltage | 12 V |
| Nominal power | 157 W |
| Nominal speed | 200 rpm |
| Combination gear ratio | 15:1 |
| Combination gear material | Composite |
| Nominal torque | 5.8 Nm |
| Intermittent torque | 10.2 Nm |
| Motor part number | 781095 |
| Motor type | PMDC |
| Motor voltage | 12 V |
| Motor power | 157 W |
| Motor output speed | 3000 rpm |
| Motor continuous current | 21.0 A |
| Motor no load speed | 3970 rpm |
| Motor no load current | 1.80 A |
| Motor continuous torque | 0.50 Nm |
| Motor intermittent torque | 0.88 Nm |
| Motor length L | 146 mm |
| Motor weight | 2.10 Kg |
| Gearbox part number | 888018 |
| Gearbox ratio | 15:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm wheel |
| Gearbox max continuous torque | 8.0 Nm |
| Gearbox max intermittent torque | 13.0 Nm |
| Gearbox efficiency | 77% |
| Gearbox gear material | Composite |
| Gearbox axial load | 300 N |
| Gearbox radial load | 350 N |
| Gearbox length | 70 mm |
| Gearbox weight | 0.70 Kg |
| Weight (kg) | 2.95 |

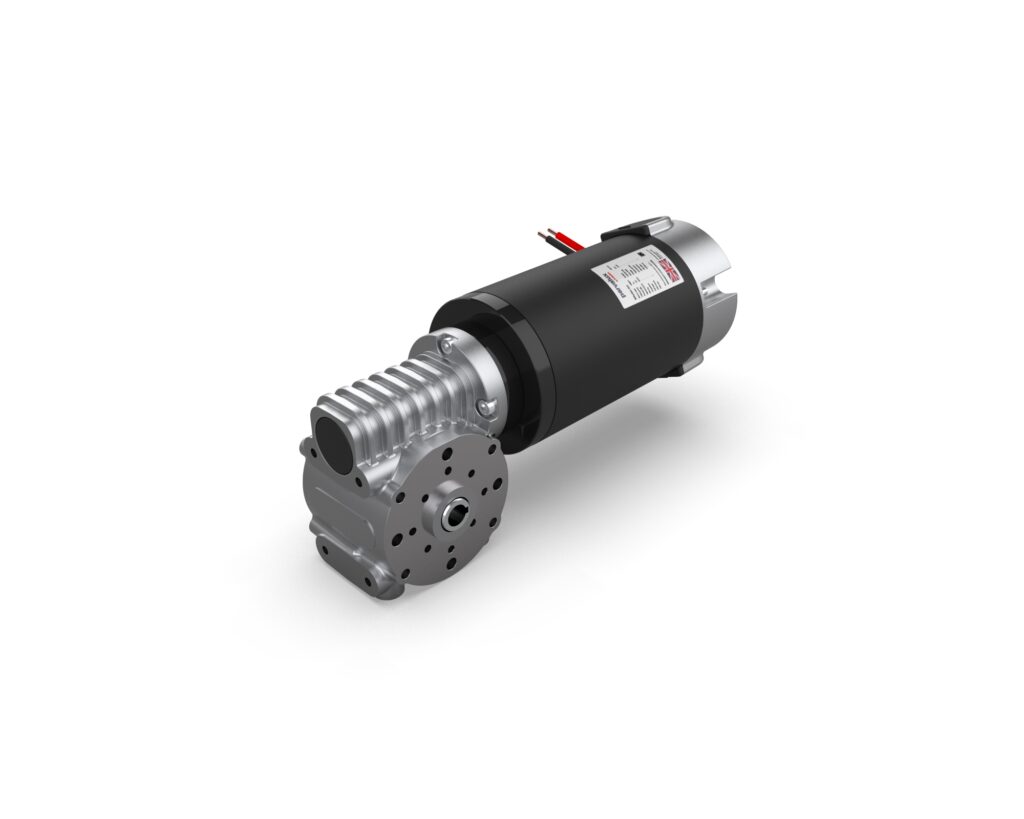

BRx70-60 12V 3000RPM – GB80 15:1 Composite
Part No:781095-888018
L: 227.0 × W: 80.0 × H: 107.0mm
BRx70-60-GB80 15:1 range - PMDC geared right-angle motor - 12 V - Delivers up to 10.2 Nm of torque (S2 - 15 minutes) - Composite gears - Available as part of the modular range. Configure online and order in quantities of up to 10 pieces direct from our website
Volume Discounts
| Quantity | Price |
|---|---|
| 1 - 4 | £773.85 / unit |
| 5 - 10 | £580.39 / unit |
| 10+ | Please Enquire |
The Parvalux BRx70-60-GB80 range is a modular motor and gearbox combination, offering motor voltages of 12 - 48 V and gearbox ratios of 15:1 - 60:1. The pairing of this motor and gearbox offers between 50 - 200 rpm and up to 13.0 Nm of torque in intermittent operation (S2 - 15 minutes). As part of the modular range, you can also add accessories such as brakes, encoders, and shaft extension kits to fine tune your combination to perfectly meet the requirements of your application.
