BRx63 Range

Speed (RPM)

3000

Power (Watts)

85

Voltage (V)

17868

Torque continuous (Nm)

0.18 - 0.27

Torque intermittent (Nm)

0.30 - 0.45

Part No:BRx63

W: 63 × H: 63mm

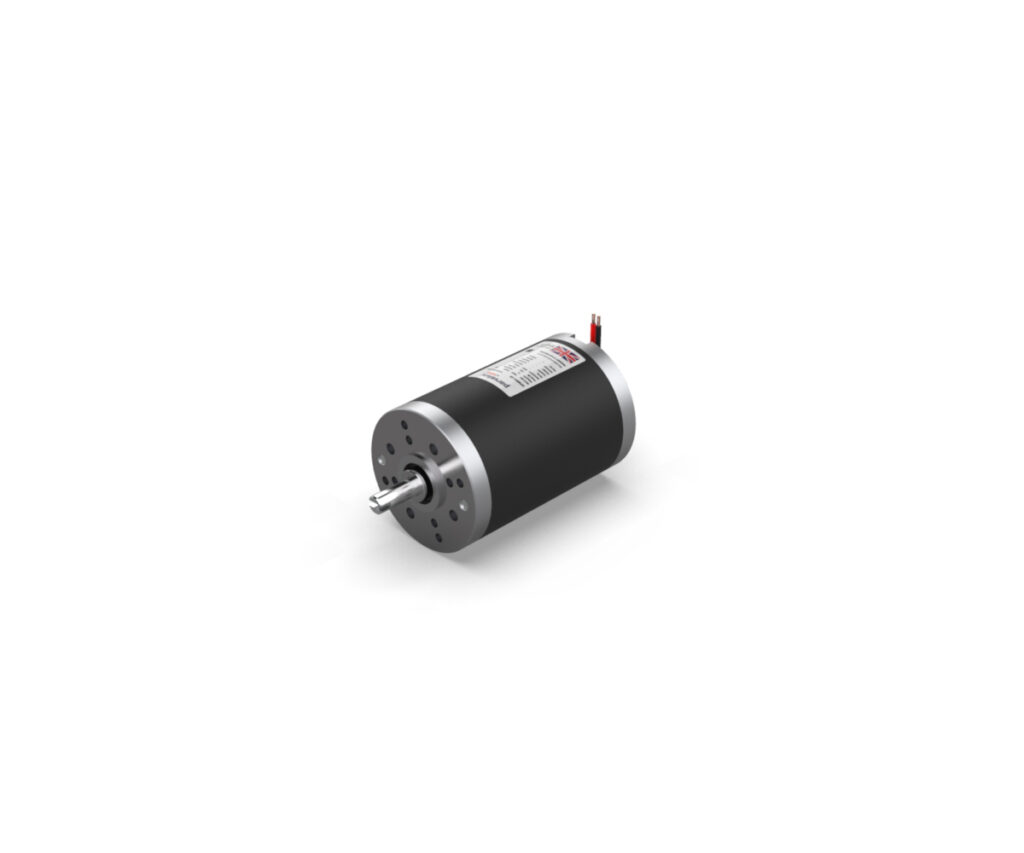

The Parvalux BRx63-55 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12v – 48v DC and output power up to 85 Watts. It is rated for nominal continuous torque up to 0.27 Nm (S1) and maximum intermittent torque up to 0.45 Nm (S2 – 15 mins).

This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.

This product comes in multiple variations. Get in touch to discuss your exact requirements.

Hidden
Consent(Required)
Range Product Name Part No Type Volts Watts RPM Nm (Cont)
BRx63-55 12V 3000 RPM 781088 PMDC 12 85 3000 0.27 View Spec Overview
BRx63-55 24V 3000 RPM 781089 PMDC 24 85 3000 0.27 View Spec Overview
BRx63-55 48V 3000 RPM 781090 PMDC 48 85 3000 0.27 View Spec Overview
BRx63-40 12V 3000 RPM 781083 PMDC 12 57 3000 0.18 View Spec Overview
BRx63-40 24V 3000 RPM 781084 PMDC 24 57 3000 0.18 View Spec Overview
BRx63-40 48V 3000 RPM 781085 PMDC 48 57 3000 0.18 View Spec Overview
BRx63-55 12V 3000 RPM Part no 781088

Range

Product Name

BRx63-55 12V 3000 RPM

Part No

781088

Type

PMDC

Volts

12

Watts

85

RPM

3000

Nm (Cont)

0.27

BRx63-55 24V 3000 RPM Part no 781089

Range

Product Name

BRx63-55 24V 3000 RPM

Part No

781089

Type

PMDC

Volts

24

Watts

85

RPM

3000

Nm (Cont)

0.27

BRx63-55 48V 3000 RPM Part no 781090

Range

Product Name

BRx63-55 48V 3000 RPM

Part No

781090

Type

PMDC

Volts

48

Watts

85

RPM

3000

Nm (Cont)

0.27

BRx63-40 12V 3000 RPM Part no 781083

Range

Product Name

BRx63-40 12V 3000 RPM

Part No

781083

Type

PMDC

Volts

12

Watts

57

RPM

3000

Nm (Cont)

0.18

BRx63-40 24V 3000 RPM Part no 781084

Range

Product Name

BRx63-40 24V 3000 RPM

Part No

781084

Type

PMDC

Volts

24

Watts

57

RPM

3000

Nm (Cont)

0.18

BRx63-40 48V 3000 RPM Part no 781085

Range

Product Name

BRx63-40 48V 3000 RPM

Part No

781085

Type

PMDC

Volts

48

Watts

57

RPM

3000

Nm (Cont)

0.18

Motor Type PMDC
Motor Poles 2
Nominal continuous torque 0.18 - 0.27 Nm
Max intermittent torque 0.30 - 0.45 Nm
Nominal power 57 - 85 W
Nominal speed 3000 rpm
Nominal continuous current 1.6 - 9.1 A
No load speed 3521 - 3621 rpm
No load current 0.15 - 0.64 A
Maximum efficiency 79 - 85%
Torque constant 0.03 - 0.12 Nm/A
Thermal resistance Ra 0.16 - 5.13 ?
Speed torque gradient 1491 - 5656 rpm/Nm
Stall torque 0.7 - 2.4 Nm
Stall current 6.9 - 75.0 A
Stack length 40 - 55 mm
Motor IP rating IP54
Speed constant 75.4 - 301 rpm/V
Radial load 150 N
Weight 1.20 - 1.45 Kg
Enclosure Enclosed
Insulation class F
Reversible Yes
Weight (kg) 120-1.45

Motor Design

The 2-pole bi-directional BRx63 is housed within an aluminum enclosure and steel tube sealed to IP54 (with IP67 on request) protecting it from dust particles and water spray. Capable of operating between -30°C and +100°C, with an ambient temperature of +40°C.

Designed with a mechanical commutation through a multi bar commutator to provide a long lifetime, it also features ball bearings at the front and rear of the motor, with low noise and vibration resistance. The motor can support custom shaft designs and special windings as required.

There are two models available, The BRx63-40 (stack length 40mm / overall motor length 95mm) and the BRx63-55 (stack length 55mm / overall motor length 125mm), delivering up to 0.30 Nm and 0.45 Nm respectively.

UL, ETL, CSA approvals available on request, with EMC EN 61000-6-3: 2007 +A1:2011 suppression optional.

The motor can be combined with Parvalux encoders, controllers, and gearheads as part of a modular
