BRx52 Range
Part No:BRx52
W: 52 × H: 52mm

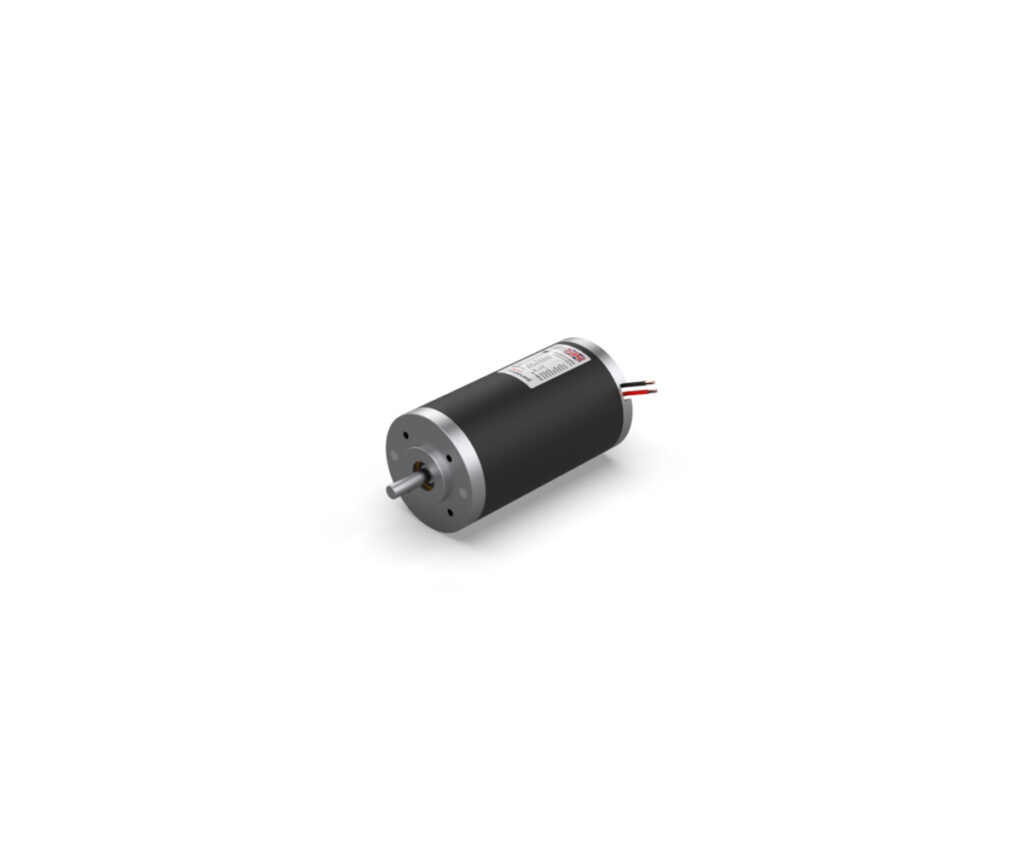

BRx52 Modular PMDC motor
This product comes in multiple variations. Get in touch to discuss your exact requirements.
Range | Product Name | Part No | Type | Volts | Watts | RPM | Nm (Cont) | |
---|---|---|---|---|---|---|---|---|
BRx52-58 12V 3000 RPM | 787111 | PMDC | 12 | 69 | 3000 | 0.22 | View Spec Overview | |
BRx52-58 24V 3000 RPM | 787113 | PMDC | 24 | 69 | 3000 | 0.22 | View Configure Spec Overview | |
BRx52-58 48V 3000 RPM | 787114 | PMDC | 48 | 69 | 3000 | 0.22 | View Configure Spec Overview | |
BRx52-30 12V 3000 RPM | 735850 | PMDC | 12 | 28 | 3000 | 0.09 | View Spec Overview | |
BRx52-30 24V 3000 RPM | 787109 | PMDC | 24 | 28 | 3000 | 0.09 | View Configure Spec Overview | |
BRx52-30 48V 3000 RPM | 787110 | PMDC | 48 | 28 | 3000 | 0.09 | View Configure Spec Overview | |
BRx52-30 12V 3000 RPM | 787108 | Motors | 12 | 28 | 3000 | 0.09 | View Spec Overview |
BRx52-58 12V 3000 RPM
Part no 787111
BRx52-58 24V 3000 RPM
Part no 787113
BRx52-58 48V 3000 RPM
Part no 787114
BRx52-30 12V 3000 RPM
Part no 735850
BRx52-30 24V 3000 RPM
Part no 787109
BRx52-30 48V 3000 RPM
Part no 787110
BRx52-30 12V 3000 RPM
Part no 787108
Motor Type | PMDC |
Motor Poles | 2 |
Nominal continuous torque | 0.09 - 0.22 Nm |
Max intermittent torque | 0.15 - 0.35 Nm |
Nominal power | 28 - 69 W |
Nominal speed | 3000 rpm |
Nominal continuous current | 0.9 - 7.6 A |
No load speed | 3547 - 3840 rpm |
No load current | 0.20 - 0.51 A |
Maximum efficiency | 71 - 80% |
Torque constant | 0.012 - 0.100 Nm/A |
Thermal resistance Ra | 0.33 - 6.69 ? |
Speed torque gradient | 3500 - 7888 rpm/Nm |
Stall torque | 0.45 - 1.10 Nm |
Stall current | 5.0 - 35.6 A |
Stack length | 30 - 58 mm |
Motor IP rating | IP54 |
Speed constant | 76.7 - 307 rpm/V |
Radial load | 90 N |
Weight | 0.85 - 1.16 Kg |
Enclosure | Enclosed |
Insulation class | F |
Reversible | Yes |
Weight (kg) | 085-1.16 |
The Parvalux BRx52-58 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12v – 48v DC and output power up to 69 Watts. It is rated for nominal continuous torque up to 0.22 Nm (S1) and maximum intermittent torque up to 0.35 Nm (S2 – 15 mins). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
