| Part number | 787113-888018 |
|---|---|
| Voltage | 24 V |
| Nominal power | 69 W |
| Nominal speed | 200 rpm |
| Combination gear ratio | 15:1 |
| Combination gear material | Composite |
| Nominal torque | 2.5 Nm |
| Intermittent torque | 4.0 Nm |
| Motor part number | 787113 |
| Motor type | PMDC |
| Motor voltage | 24 V |
| Motor power | 69 W |
| Motor output speed | 3000 rpm |
| Motor continuous current | 3.9 A |
| Motor no load speed | 3840 rpm |
| Motor no load current | 0.40 A |
| Motor continuous torque | 0.22 Nm |
| Motor intermittent torque | 0.35 Nm |
| Motor length L | 125 mm |
| Motor weight | 1.16 Kg |
| Gearbox part number | 888018 |
| Gearbox ratio | 15:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm wheel |
| Gearbox max continuous torque | 8.0 Nm |
| Gearbox max intermittent torque | 13.0 Nm |
| Gearbox efficiency | 77% |
| Gearbox gear material | Composite |
| Gearbox axial load | 300 N |
| Gearbox radial load | 350 N |
| Gearbox length | 70 mm |
| Gearbox weight | 0.70 Kg |
| Weight (kg) | 1.86 |

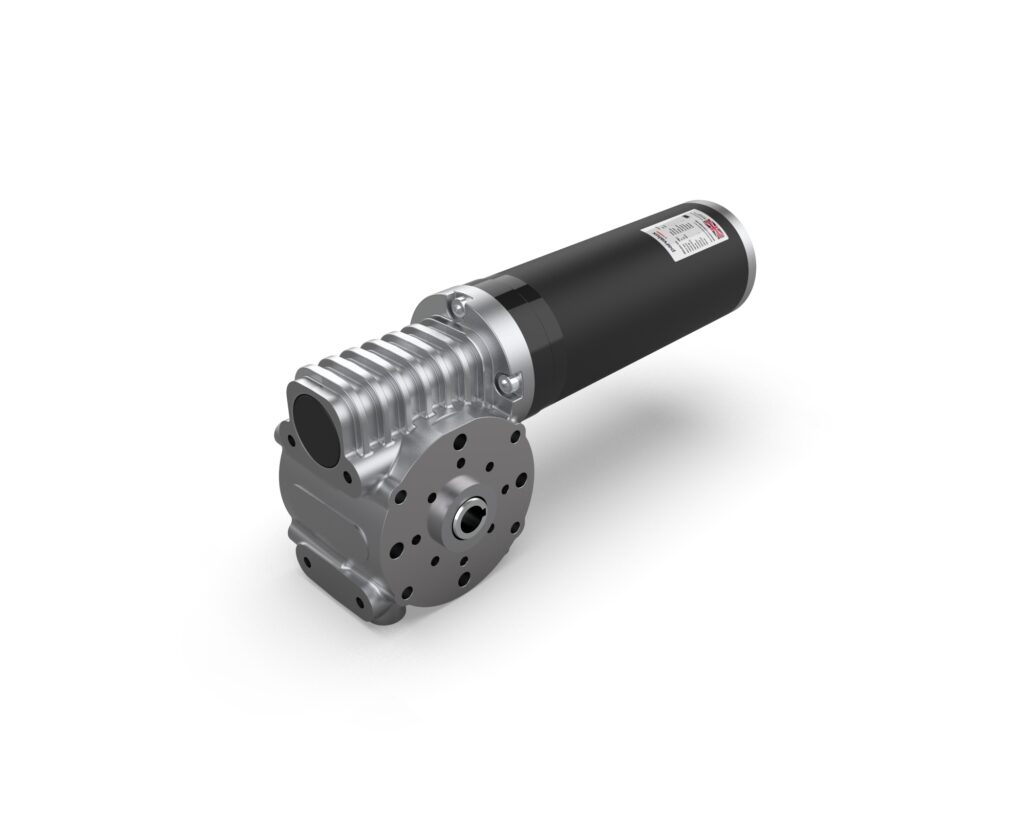

BRx52-58 24V 3000RPM – GB80 15:1 Composite
Part No:787113-888018
L: 206.0 × W: 68.0 × H: 97.0mm
BRx52-58-GB80 15:1 range - PMDC geared right-angle motor - 24 V - Delivers up to 4.0 Nm of torque (S2 - 15 minutes) - Composite gears - Available as part of the modular range. Configure online and order in quantities of up to 10 pieces direct from our website
Volume Discounts
| Quantity | Price |
|---|---|
| 1 - 4 | £643.09 / unit |
| 5 - 10 | £482.31 / unit |
| 10+ | Please Enquire |
The Parvalux BRx52-58-GB80 range is a modular motor and gearbox combination, offering motor voltages of 12 - 48 V and gearbox ratios of 15:1 - 60:1. The pairing of this motor and gearbox offers between 48 - 200 rpm and up to 10.0 Nm of torque in intermittent operation (S2 - 15 minutes). As part of the modular range, you can also add accessories such as brakes, encoders, and shaft extension kits to fine tune your combination to perfectly meet the requirements of your application.
