| Part number | 781081 |
|---|---|
| Motor type | PMDC |
| Nominal voltage | 48 V |
| Nominal power | 18 W |
| No load speed | 4054 rpm |
| No load current | 0.08 A |
| Nominal speed | 3000 rpm |
| Nominal continuous current | 0.53 A |
| Nominal continuous torque | 0.06 Nm |
| Max intermittent torque | 0.09 Nm |
| Stall current | 1.92 A |
| Stall torque | 0.27 Nm |
| Maximum efficiency | 85% |
| Thermal resistance Ra | 17.25 Ohms |
| Speed constant | 87.5 rpm/V |
| Torque constant | 0.120 Nm/A |
| Speed torque gradient | 18613 rpm/Nm |
| Rotor inertia | 1.4 x 10¯⁵ Kgcm² |
| Radial load | 60 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP54 |
| Enclosure | Enclosed |
| Insulation class | F |
| Reversible | Yes |
| Motor poles | 2 |
| Stack length | 34 mm |
| Motor length | 85 mm |
| Weight | 0.52 Kg |
| Weight (kg) | 0.52 |

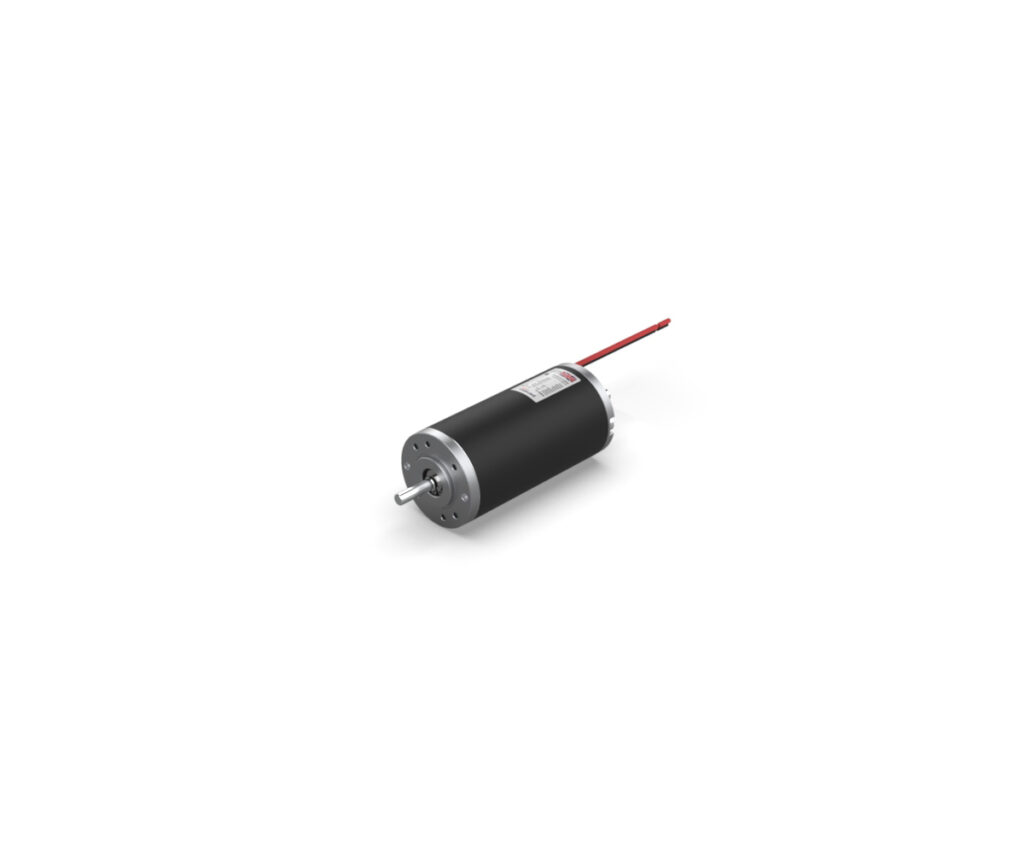

BRx42-40 48V 3000 RPM
Part No:781081
L: 85 × W: 42 × H: 42mm
BRx42-40 48V 3000 RPM - PMDC motor - 48 V - 20 W - Delivers up to 0.09 Nm of torque - Modular motor - configure online and order in quantities of up to 10 pieces direct from our website
The Parvalux BRx42-40 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12v - 48v DC and output power up to 20 watts. It is rated for nominal continuous torque up to 0.06 Nm (S1) and maximum intermittent torque up to 0.09 Nm (S2 - 15 min). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
