| Motor Type | PMDC |
|---|---|
| Motor Poles | 2 |
| Nominal power | 18 W |
| Stack length | 40 mm |
| Motor IP rating | IP54 |
| Gearbox Orientation | Inline |
| Gearbox Type | Planetary |
| Gearbox Ratio | 66:1 ratio |
| Gear Material | Steel |
| Gearbox Stages | 3 |
| Gearbox Efficiency | 72% |
| Gearbox Axial Load | 150 N |
| Gearbox Radial Load | 360 N |
| Gearbox Continuous Torque | 2.7 Nm |
| Gearbox Intermittent Torque | 4.3 Nm |
| Backlash | 60 arc.min |
| Weight (kg) | 0.98 |
BRx42-40 12V 3000RPM – PGx42 66:1 Steel
Part No:781079-891039
L: 151.3 × W: 42 × H: 42mm

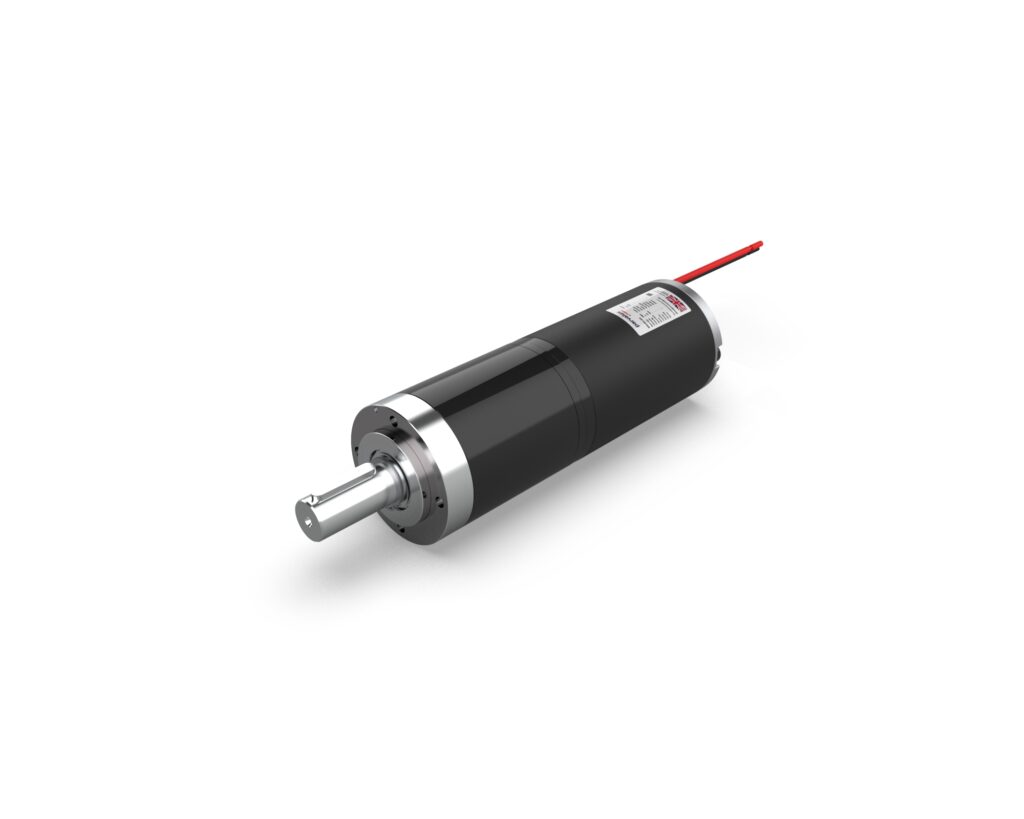

BRx42-40 12V 3000 RPM Modular PMDC motor with the PGx42 66:1 Steel gearbox

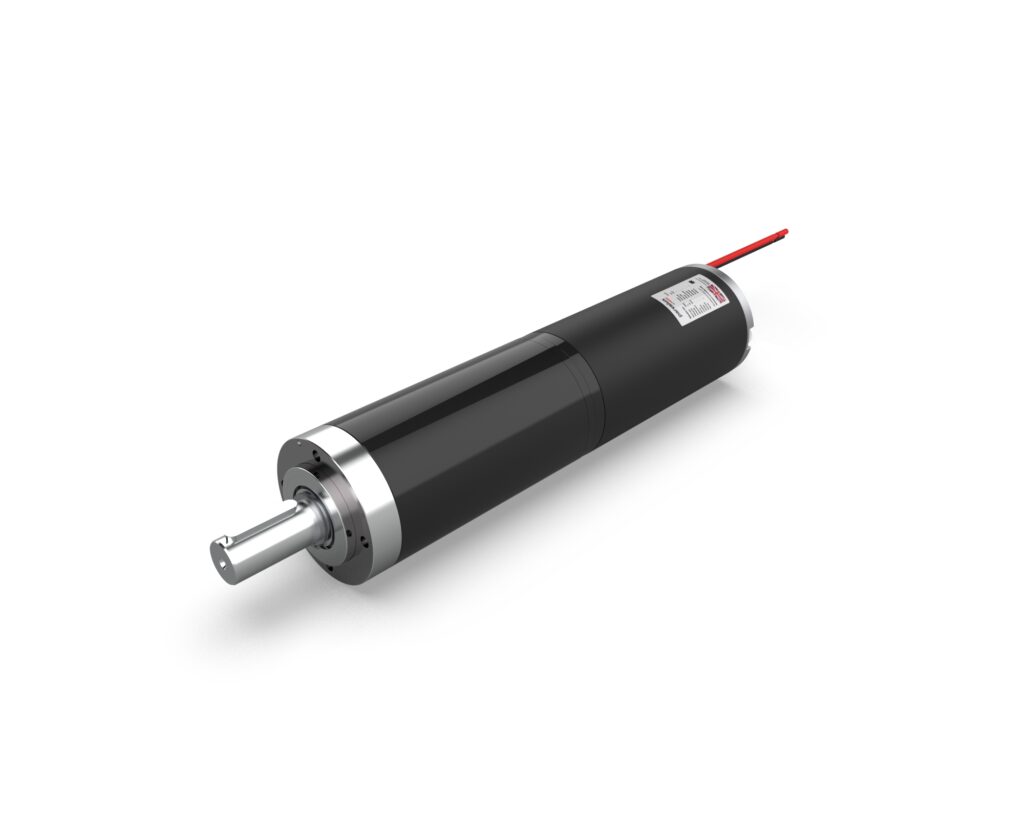

The Parvalux BRx42-40-PGx42 range is a modular motor and gearbox combination, offering motor voltages of 12 - 48 V and gearbox ratios of 4.3:1 - 353:1. The pairing of this motor and gearbox offers between 8 - 698 rpm and up to 16.9 Nm of torque in intermittent operation (S2 - 15 minutes). As part of the modular range, you can also add accessories such as brakes and encoders to fine tune your combination to perfectly meet the requirements of your application.
