| Part number | BRx70-40-GB12 |
|---|---|
| Voltage | 12 - 48 V |
| Nominal power | 79 W |
| Nominal speed | 50 - 200 rpm |
| Combination gear ratio | 15:1 - 60:1 |
| Combination gear material | Bronze |
| Nominal torque | 2.8 - 7.5 Nm |
| Intermittent torque | 4.7 - 12.6 Nm |
| Motor part number | BRx70-40 |
| Motor type | PMDC |
| Motor voltage | 12 - 48 V |
| Motor power | 79 W |
| Motor output speed | 3000 rpm |
| Motor continuous current | 2.1 - 9.2 A |
| Motor no load speed | 3167 - 3433 rpm |
| Motor no load current | 0.28 - 1.80 A |
| Motor continuous torque | 0.25 Nm |
| Motor intermittent torque | 0.42 Nm |
| Motor length (L) | 125 mm |
| Motor weight | 1.86 Kg |
| Gearbox part number | GB12 |
| Gearbox ratio | 15:1 - 60:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm wheel |
| Gearbox max continuous torque | 30.0 Nm |
| Gearbox max intermittent torque | 48.0 Nm |
| Gearbox efficiency | 50 - 75% |
| Gearbox gear material | Bronze |
| Gearbox axial load | 600 N |
| Gearbox radial load | 800 N |
| Gearbox length | 110 mm |
| Gearbox weight | 1.50 Kg |
| Weight (kg) | 5.20 |
BRx70-40-GB12 Range
Part No:BRx70-40-GB12
L: 250.0 × W: 81.0 × H: 138.0mm
BRx70-40-GB12 range - PMDC right-angle geared motor - 12 - 48 V - 79 W - Delivers up to 12.6 Nm of torque - Modular combination - configure online and order in quantities of up to 10 pieces direct from our website
This product comes in multiple variations. Get in touch to discuss your exact requirements.
| Product name | Speed (rpm) | Power (Watts) | Volts (v) | Torque Nom. (Nm) | Torque Int (Nm) | |
|---|---|---|---|---|---|---|
|
PART NO: 781092-735900 BRx70-40 12V 3000RPM – GB12 15:1 Bronze |
200 | 79 | 12 | 2.8 | 4.7 | |
|
PART NO: 781092-735901 BRx70-40 12V 3000RPM – GB12 30:1 Bronze |
100 | 79 | 12 | 4.9 | 8.2 | |
|
PART NO: 781092-735902 BRx70-40 12V 3000RPM – GB12 60:1 Bronze |
50 | 79 | 12 | 7.5 | 12.6 | |
|
PART NO: 781093-735900 BRx70-40 24V 3000RPM – GB12 15:1 Bronze |
200 | 79 | 24 | 2.8 | 4.7 | |
|
PART NO: 781093-735901 BRx70-40 24V 3000RPM – GB12 30:1 Bronze |
100 | 79 | 24 | 4.9 | 8.2 | |
|
PART NO: 781093-735902 BRx70-40 24V 3000RPM – GB12 60:1 Bronze |
50 | 79 | 24 | 7.5 | 12.6 | |
|
PART NO: 781094-735900 BRx70-40 48V 3000RPM – GB12 15:1 Bronze |
200 | 79 | 48 | 2.8 | 4.7 | |
|
PART NO: 781094-735901 BRx70-40 48V 3000RPM – GB12 30:1 Bronze |
100 | 79 | 48 | 4.9 | 8.2 | |
|
PART NO: 781094-735902 BRx70-40 48V 3000RPM – GB12 60:1 Bronze |
50 | 79 | 48 | 7.5 | 12.6 |

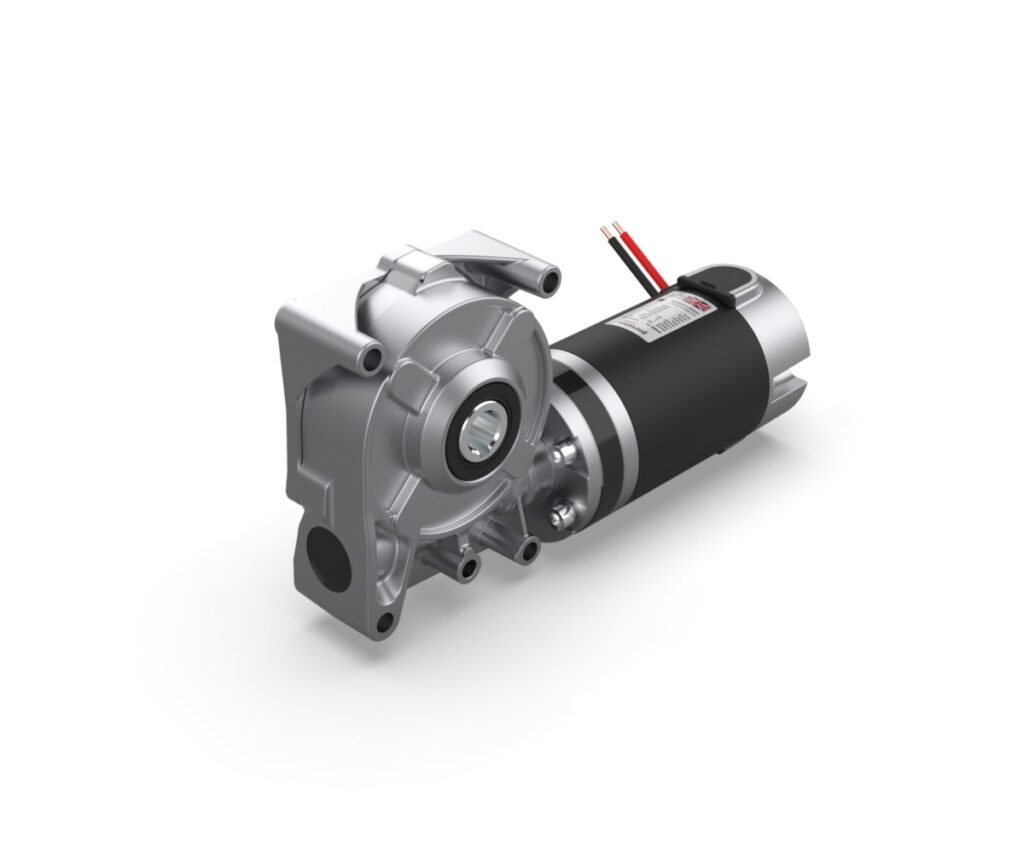

The Parvalux BRx70-40-GB12 range is a modular motor and gearbox combination, offering motor voltages of 12 - 48 V and gearbox ratios of 15 - 60:1. The pairing of this motor and gearbox offers between 50 - 200 rpm and up to 12.6 Nm of torque in intermittent operation (S2 - 15 minutes). As part of the modular range, you can also add accessories such as brakes, encoders, and shaft extension kits to fine tune your combination to perfectly meet the requirements of your application.
