| Part number | 512M30B |
|---|---|
| Tension | 12 V |
| Puissance nominale | 170 W |
| Vitesse nominale | 100 rpm |
| Combination gear ratio | 30:1 |
| Combination gear material | Bronze |
| Nominal torque | 9.9 Nm |
| Intermittent torque | 12.8 Nm |
| Motor part number | 774940 |
| Motor type | PMDC |
| Motor voltage | 12 V |
| Motor power | 170 W |
| Motor output speed | 3000 rpm |
| Motor continuous current | 18.3 A |
| Motor no load speed | 3602 rpm |
| Motor no load current | 1.80 A |
| Motor continuous torque | 0.54 Nm |
| Motor intermittent torque | 0.70 Nm |
| Motor length (L) | 162 mm |
| Motor weight | 2.70 Kg |
| Gearbox part number | M30B |
| Gearbox ratio | 30:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Engrenage à vis sans fin |
| Gearbox max continuous torque | 12.0 Nm |
| Gearbox max intermittent torque | 19.0 Nm |
| Gearbox efficiency | 61% |
| Gearbox gear material | Bronze |
| Gearbox axial load | 300 N |
| Gearbox radial load | 350 N |
| Gearbox length | 78 mm |
| Gearbox weight | 0.90 Kg |
| Poids (kg) | 3.60 |

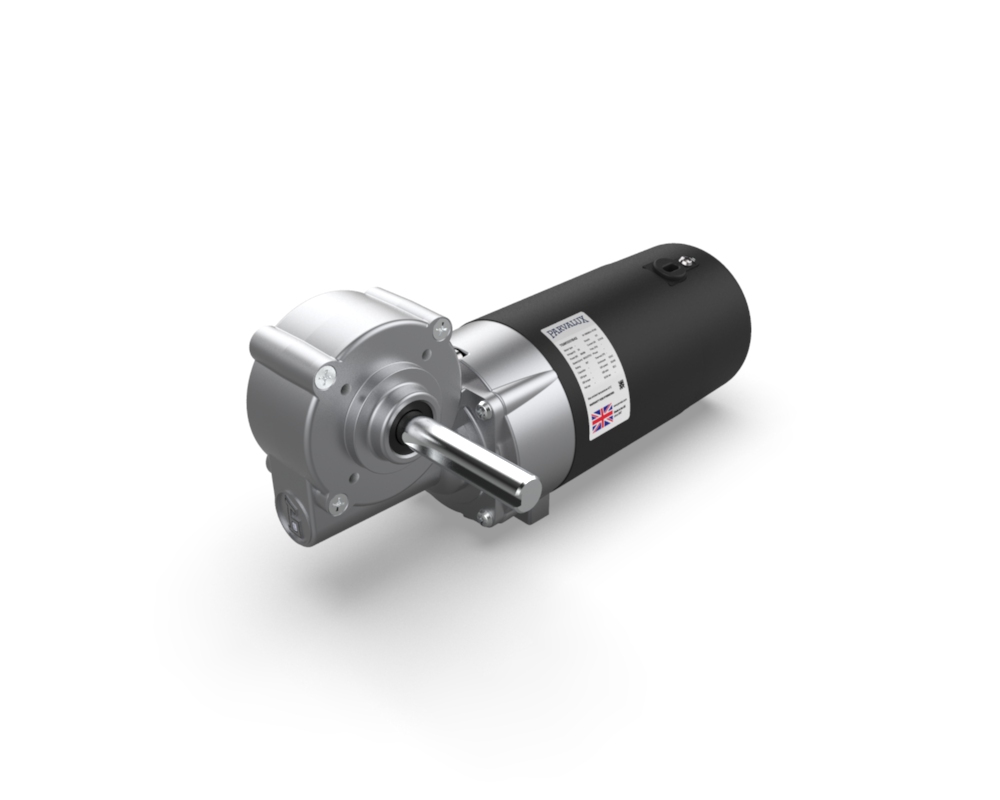

PM5 12V 3000 RPM – M Box 30:1 Bronze
Pièce n°:512M30B
L: 238.0 × W: 77.0 × H: 100.0mm
PM5 12V 3000 RPM - M Box 30:1 Bronze - PMDC geared right-angle motor - 12 V - Delivers up to 12.8 Nm of torque (S2 - 15 minutes) - 30:1 gear ratio with Bronze gears - Standard combination - please contact your local sales engineer for details on your customisation options
The Parvalux PM5 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 24v - 220v DC and output power up to 170 Watts. It is rated for nominal continuous torque up to 0.54 Nm (S1) and maximum intermittent torque up to 0.70 Nm (S2-15min). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
