| Part number | 29230360G2830 |
|---|---|
| Tensión | 230 V |
| Potencia nominal | 100 W |
| Velocidad nominal | 113 rpm |
| Combination gear ratio | 30:1 |
| Combination gear material | Bronce |
| Nominal torque | 5.0 Nm |
| Intermittent torque | - |
| Motor part number | 293.436 |
| Motor type | AC |
| Motor phases | 3 |
| Motor frequency | 50 - 60 Hz |
| Motor voltage | 230 V |
| Motor power | 100 W |
| Motor output speed | 3400 rpm |
| Motor continuous current | - |
| Motor input power | 185 W |
| Motor capacitor | - |
| Motor continuous torque | 0.41 Nm |
| Motor intermittent torque | - |
| Motor length (L) | 147 mm |
| Motor weight | 3.60 Kg |
| Gearbox part number | 735906 |
| Gearbox ratio | 30:1 ratio |
| Gearbox orientation | Right angle |
| Gearbox type | Tornillo sin fin |
| Gearbox max continuous torque | 5.0 Nm |
| Gearbox max intermittent torque | 8.0 Nm |
| Gearbox efficiency | 65% |
| Gearbox gear material | Bronce |
| Gearbox axial load | 300 N |
| Gearbox radial load | 400 N |
| Gearbox length | 88 mm |
| Gearbox weight | 0.83 Kg |
| Peso (kg) | 4.40 |

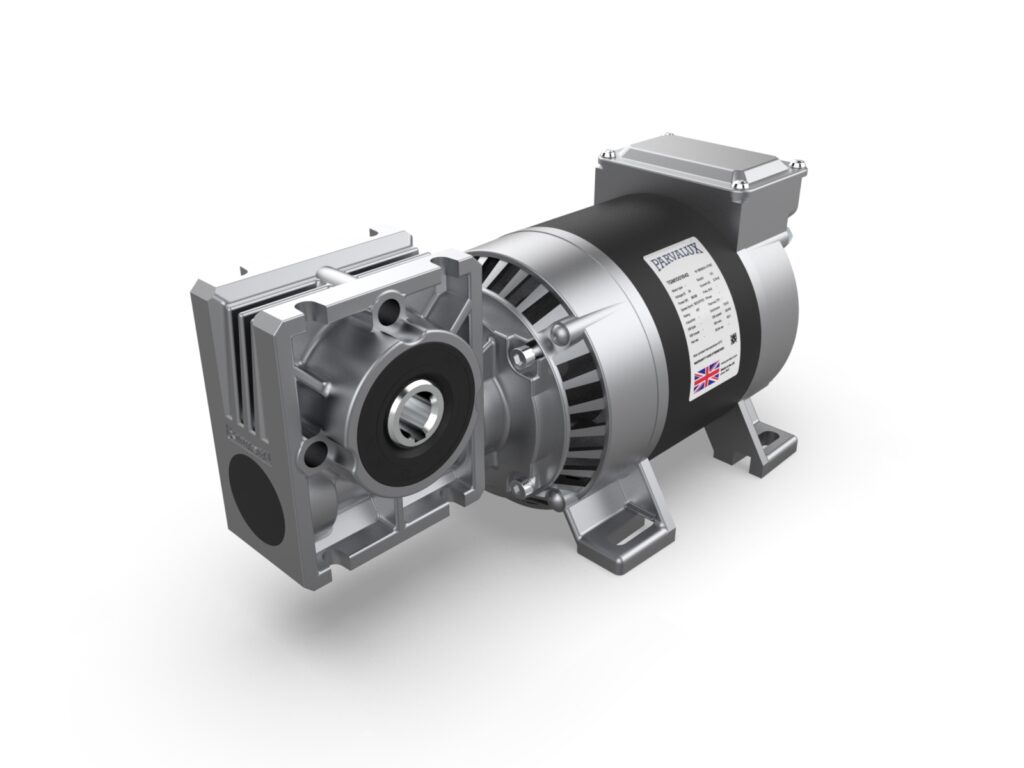

SD29 230V 3400 RPM 3 PHASE 60Hz – GB28 30:1 Bronze
Código de producto:29230360G2830
L: 230.0 × W: 96.0 × H: 125.0mm
SD29 230V 3400 RPM - GB28 30:1 Bronze - AC geared right-angle motor - 230 V - Delivers up to 5.0 Nm of torque (S1) - 30:1 gear ratio with bronze gears - Standard combination - please contact your local sales engineer for details on your customisation options
