| Part number | 28230150G2860 |
|---|---|
| Tensión | 230 V |
| Potencia nominal | 100 W |
| Velocidad nominal | 47 rpm |
| Combination gear ratio | 60:1 |
| Combination gear material | Bronce |
| Nominal torque | 5.0 Nm |
| Intermittent torque | - |
| Motor part number | 282.815 |
| Motor type | AC |
| Motor phases | 1 |
| Motor frequency | 50 - 60 Hz |
| Motor voltage | 230 V |
| Motor power | 100 W |
| Motor output speed | 2800 rpm |
| Motor continuous current | 0.76 A |
| Motor input power | 185 W |
| Motor capacitor | 3.0 MFD |
| Motor continuous torque | 0.34 Nm |
| Motor intermittent torque | - |
| Motor length (L) | 144 mm |
| Motor weight | 3.60 Kg |
| Gearbox part number | 735907 |
| Gearbox ratio | 60:1 ratio |
| Gearbox orientation | Right angle |
| Gearbox type | Tornillo sin fin |
| Gearbox max continuous torque | 5.0 Nm |
| Gearbox max intermittent torque | 8.0 Nm |
| Gearbox efficiency | 45% |
| Gearbox gear material | Bronce |
| Gearbox axial load | 300 N |
| Gearbox radial load | 400 N |
| Gearbox length | 88 mm |
| Gearbox weight | 0.83 Kg |
| Peso (kg) | 4.40 |

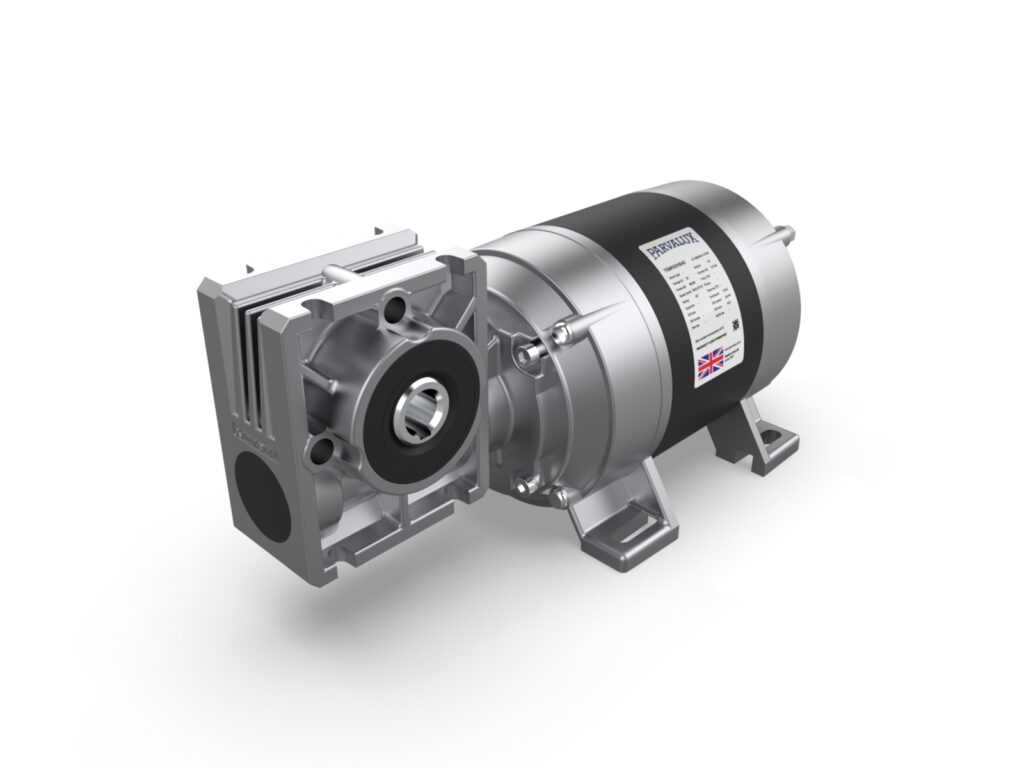

SD28 230V 2800 RPM 1 PHASE 50Hz – GB28 60:1 Bronze
Código de producto:28230150G2860
L: 227.0 × W: 96.0 × H: 125.0mm
SD28 230V 2800 RPM - GB28 60:1 Bronze - AC geared right-angle motor - 230 V - Delivers up to 5.0 Nm of torque (S1) - 60:1 gear ratio with bronze gears - Standard combination - please contact your local sales engineer for details on your customisation options
