| Part number | 50121275C |
|---|---|
| Tensión | 12 V |
| Potencia nominal | 210 W |
| Velocidad nominal | 47 rpm |
| Combination gear ratio | 75:1 |
| Combination gear material | Composite |
| Nominal torque | 18.0 Nm |
| Intermittent torque | 29.0 Nm |
| Motor part number | 775158 |
| Motor type | PMDC |
| Motor voltage | 12 V |
| Motor power | 210 W |
| Motor output speed | 3000 rpm |
| Motor continuous current | 28.5 A |
| Motor no load speed | 3562 rpm |
| Motor no load current | 2.50 A |
| Motor continuous torque | 0.87 Nm |
| Motor intermittent torque | 1.15 Nm |
| Motor length (L) | 180 mm |
| Motor weight | 2.90 Kg |
| Gearbox part number | GB12-75C |
| Gearbox ratio | 75:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Tornillo sin fin |
| Gearbox max continuous torque | 18.0 Nm |
| Gearbox max intermittent torque | 29.0 Nm |
| Gearbox efficiency | 50% |
| Gearbox gear material | Composite |
| Gearbox axial load | 600 N |
| Gearbox radial load | 800 N |
| Gearbox length | 110 mm |
| Gearbox weight | 1.10 Kg |
| Peso (kg) | 4.00 |

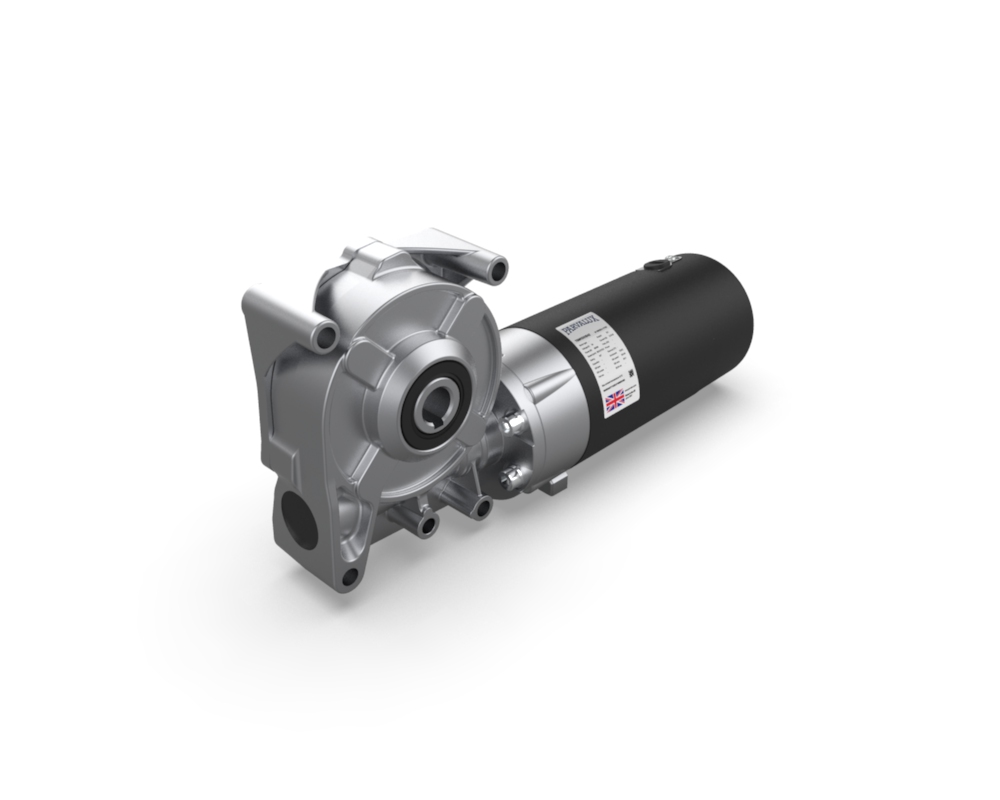

PM50 12V 3000 RPM – GB12 75:1 Composite
Código de producto:50121275C
L: 290.0 × W: 77.0 × H: 143.0mm
PM50 12V 3000 RPM - GB12 72:1 Composite - PMDC geared right-angle motor - 12 V - Delivers up to 29.0 Nm of torque (S2 - 15 minutes) - 72:1 gear ratio with composite gears - Standard combination - please contact your local sales engineer for details on your customisation options
The Parvalux EPM50 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12v - 48v DC and output power up to 151 Watts. It is rated for continuous torque up to 0.48 Nm (S1) and maximum intermittent torque up to 0.80 Nm (S2 - 15min). It offers up to 81% efficiency. This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
